double spindle cnc stone cutting machines for sale
double spindle cnc stone cutting machines for sale
double spindle cnc stone cutting machines for sale
double spindle cnc stone cutting machines for sale

double spindle cnc stone cutting machines for sale

Payment Type: L/C,T/T,D/P,Paypal,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Contact Now Add to Basket

Basic Info

    Model No.: CX1325

    Function: Line Engraving, Lettering

    Application Material: Granite

    Automation: Automatic

    Control: CNC

    Motor Power: High Power

    Engraving Head Speed Adjustability: Wide Adjustable Range

    Certification: CE, ISO

    Current: AC

    Application: Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry

    Customized: Customized

    Control System: DSP Or Ncstudio

    Transmission: Helical Rack Pinion

    Guiding Way: Square Guide Rail Taiwan Hiwin 25 Size

    Spindle Power: 5.5kw Water Cooling Spindle

    Machine Weight: 2200kgs

    Machine Table: T-slot

    Working Size: 1300*2500mm

    Water Tank: Stainless Steel Water Tank

    Driving: Stepper Driving

    Inverter: Ourui Brand

Additional Info

    Packaging: fumigation-free plywood case

    Productivity: 100sets/month

    Brand: Super Star

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 100set/month

    Certificate: CE ISO

    HS Code: 84659900

    Port: Qingdao Port,Shanghai Port,Tianjin Port

Product Description


1. The product is a normal model of heavy stone flat engraving machine.

2. Machine bed adopt joist steel that improve the load-bearing capacity which can bear more than 2 tons.

3. The bed inside uses stainless steel that can greatly prolong the working life of the machine.

5. The new three shaft waterproof and waterproof design, easy to remove, repair and maintenance.

Stone CNC Router features:

1. I steel frame table, and put pvc on I frame, heavy duty, can bear 5000kgs weight stone

2.Thick PVC is put on I frame table, more professional, suitable for heavy duty stone material

3. Y axis motor installed over guide rail, professional stone gantry, more stable.

4.Professional bits, used for granite, marble engraving (including letter writing bits, cutting bits, engraving bits)

Stone cnc carving machine belongs to double heads Stone Cnc Router, it can be made into single head stone cnc router, can also be made into double head stone router, can do 2d 3d carving on stone granite marble etc. Super Star Stone Engraving Machine is exported to India, egypt, vietnam, USA etc.

Cnc Stone Router and Cnc Stone Carving Machine can be used in architectural industry, decoration, building industry etc.

Description & Specifications:

X Working Area


Y Working Area


Z Working Area


Machine frame

Thick Steel frame (8mm thickness)

Traveling Positioning Accuracy


Repositioning Positioning Accuracy


X,Y ,Z Structure

XY gear wheel, Z ball screw. All Axis use Square Guide

Working table

Professional design for stone materials

Max. Rapid Travel Rate


Max. Working Speed



4.5kw water cooled spindle with constant power ( higher efficiency than ordinary spindle)

Spindle Speed


Drive Motor

Stepper driving



Working voltage

3PH AC380V/50Hz

Control System

DSP control

Guide rail

Square rail

Control cabinet

Independent cabinet

The machine standard parts

stepper motor and driver

DSP control system

water cooling spindle

Square guide rail

oil lubricating system


water pump

user manual /CD video/soft dog/

water flume

water spray cooling system

Machine Photo:

stone machinery for sale

china stone cnc router


cnc router stone

stone cnc router

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Feedback from stone cnc router customers:

Feedback 2Feedback 1

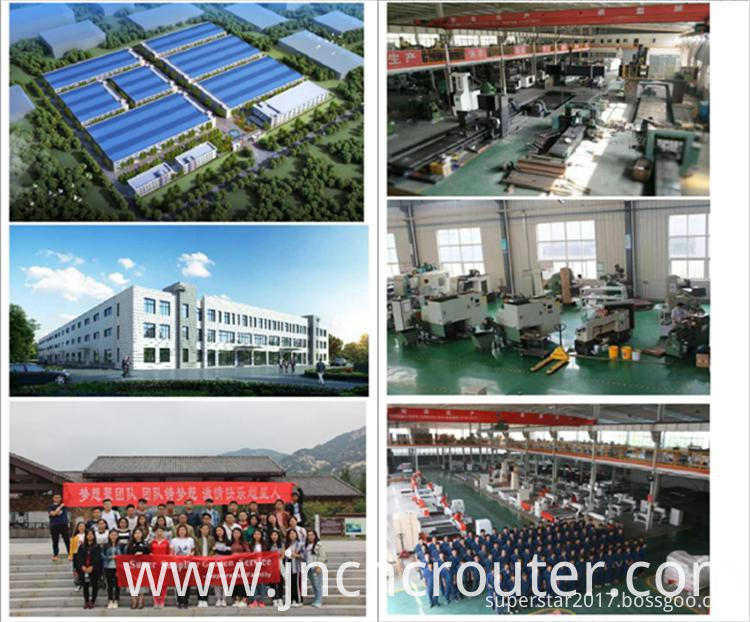

Company Info:

Jinan Jinshengxing Machinery Manufacture Co., Ltd (SUPER STAR CNC GROUP). was founded in 2003, dedicated to manufacture Woodworking Machine, such as 3d cnc router, multi heads cnc router, automatic tool changer cnc router, cnc router with CCD and Oscillating knife cutting head. etc.

Own 70000 square meters factory, 3 production base
300 workers
50 overseas servicing engineer
has 10 overseas warhouse in pakistan, uzbekistan, vietnam, south africa, kazakstan, kenya, myanmar, thailand, turkey and russia. Customers from these countries can take stock machine immediately after pay case, and local servicing person will help you install machine and provide training.

pakistan cnc router

Our team and customers:

china woodworking router machine

woodworking machine milling center

Looking for ideal Cnc Stone Cutting Machines for Sale Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Stone Cutting Cnc Machines for Sale are quality guaranteed. We are China Origin Factory of Stone Cnc Cutting Machines for Sale. If you have any question, please feel free to contact us.
