Stone Marble Granite carving Machine for Sale

Share to:
    Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,EXW,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days

Basic Info

Model No.: CX1325

Certification: GS, SGS, CE, RoHS, ISO 9001

Usage: Metal, Glass, Stone, Mould

Current: AC

Power: High Power

Control: CNC

Drive Type: Stepper Drive

Name: CX1325 Stone Cnc Router

Type: : CNC Cutting Machine

Usage: : Jadestone, Granite, Marble

Application::  Stone Industry

Automation::  Automatic

Source Voltage: 220V

Motor:: Servo Motor

Spindle:: Water Cooling Spindle

Control System:: NC Studio Controller

Additional Info

Packaging: Export plywood case

Productivity: 1000sets

Brand: Super Star

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 100sets per month

Certificate: ISO,CE,SGS,FDA

HS Code: 84659090

Port: Qingdao,Shanghai,Tianjin

Product Description

Stone Marble Granite carving Machine for Sale

2


Features of Stone Marble Granite carving Machine for Sale:

1. Granite engraving machine use I steel frame table, and put pvc on I frame, heavy duty, can bear 5000kgs weight stone

2.Thick PVC is put on I frame table, more professional, suitable for heavy duty stone material

3. Y axis motor installed over guide rail, professional stone gantry, more stable.

4.Professional bits, used for granite, marble engraving (including letter writing bits, cutting bits, engraving bits)

Description & Specifications of Stone Marble Granite carving Machine for Sale

X Working Area

1300mm

Y Working Area

2500mm

Z Working Area

600mm

Machine frame

Thick Steel frame (8mm thickness)

Traveling Positioning Accuracy

±0.05mm

Repositioning Positioning Accuracy

±0.05mm

X,Y ,Z Structure

XY gear wheel, Z ball screw. All Axis use Square Guide

Working table

Professional design for stone materials

Max. Rapid Travel Rate

50000mm/min

Max. Working Speed

25000mm/min

Spindle

4.5kw water cooled spindle with constant power

( higher efficiency than ordinary spindle)

Spindle Speed

0-24000rpm

Drive Motor

Stepper driving

Command

G-code*.u00*.mmg*.plt

Working voltage

3PH AC380V/50Hz

Control System

DSP control

Guide rail

Square rail

Control cabinet

Independent cabinet

The machine standard parts

stepper motor and driver

DSP control system

water cooling spindle

Square guide rail

oil lubricating system

inverter

water pump

user manual /CD video/soft dog/

water flume

water spray cooling system

Stone cnc carving machine belongs to Stone Cutting And Engraving Machine, it can be made into single head Stone Cnc Router, can also be made into double head stone router. Super Star Stone Engraving Machine is exported to India, egypt, vietnam, USA etc.

Cnc Stone Router and Cnc Stone Carving Machine can be used in architectural industry, decoration, building industry etc.

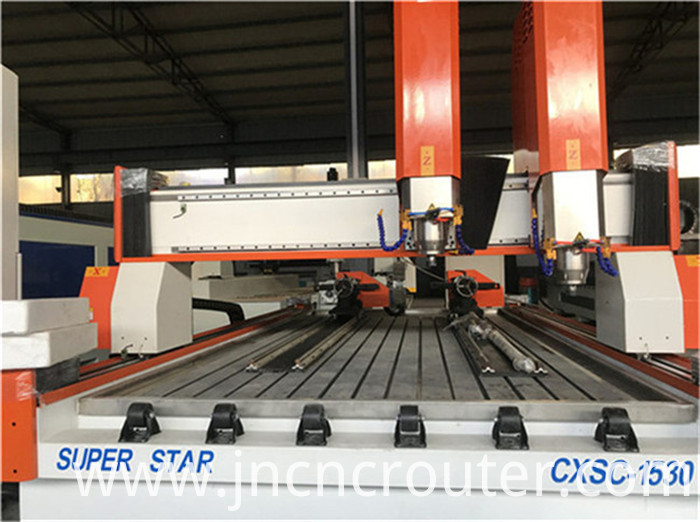

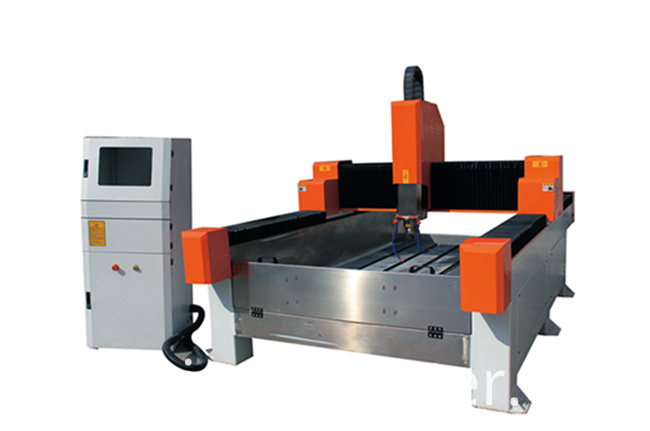

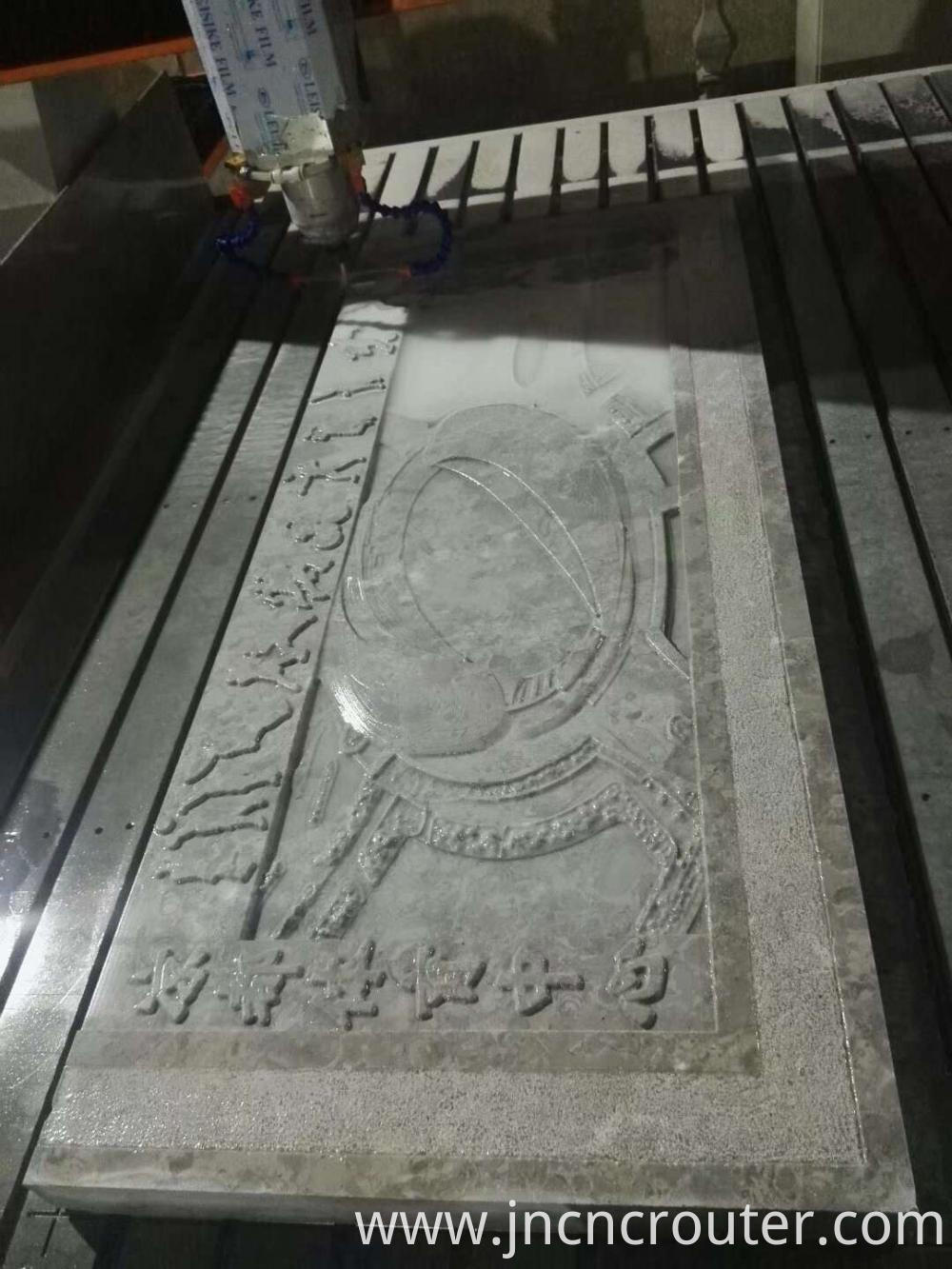

Machine pics:

20181213140518

1 3

Packaging & Shipping

Packing Shipping

Company Information

Super Star CNC Group was established in 2003, manufacturing of all kinds of CNC router with CE certification.

Workers over 300 persons, 50 overseas sales.

Now we have whole sellers in many countries including United States, Canada ,Australia, England, France,Russia, Brazil, Argentina, India, Turkey etc.

We have established oversea warehouse in more than 20 foreign countries,it will be much convenient for you to check the machines quality in person

Our Services

1.Guarantee for one year

2.24 hour technical support by email or calling

3.User-friendly English manual for machine using and maintaining

4.Free technician training for large customers


Feeback


FAQ

1.Can I get a machine according to my own requirements?

Sure.We accept OEM and ODM as your requirements.

2.I am a new machine operator. Do you provide training?

Yes. We supply overseas after-sale service.

3.My machine is broken. Can you repair it for me?

Yes. We have free traning online.

If there is big trouble with your machine in the warrenty time, we can repair it.

4.What's the quality of your machine?

Our machine adopts heavy lathe bed, and each part is processed by CNC

machining center, which greatly improves the accuracy of machine operation.
