Factory supply discount price stone carving machine
Factory supply discount price stone carving machine
Factory supply discount price stone carving machine

Factory supply discount price stone carving machine

Unit Price: USD 5800 - 5900 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 15 Days

Add to Basket

Basic Info

    Model No.: M25

    Certification: CE, ISO 9001

    Usage: Stone

    Current: AC

    Power: High Power

    Control: CNC, 3 Axis Dsp Or Ncstudio

    Drive Type: Stepper Drive

    Application: Stone Engraving

    Condition: New

    Driver: Stepper

    Product Name: Stone Cnc Router

    Spindle: 5.5 Kw Water Cooling

    Guiding System: Taiwan Square Rail: Taiwan Square Rail

    Warranty: 1 Year

    Size: 1300mm*2500mm

    Transmission: Taiwan Helical Rack Pinion

Additional Info

    Packaging: Packing in plastic film or wooden case

    Productivity: 50/month

    Brand: SUPER STAR

    Transportation: Ocean,Land,Air

    Place of Origin: JINAN

    Supply Ability: 50/month

    Certificate: ISO CE

    Port: Qingdao,Shanghai

Product Description

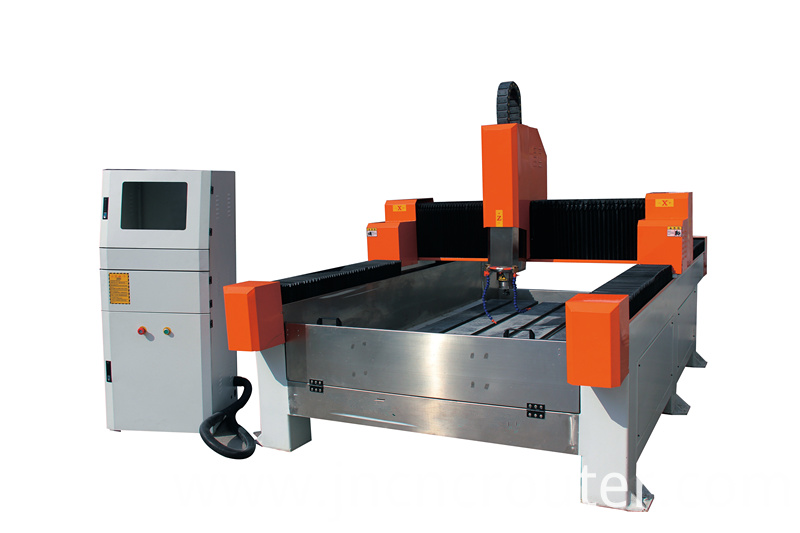

Factory supply discount price Stone Carving Machine

2

Technical Parameter:

Stone Cutting And Engraving Machine

Model

CXS1325

X,Y,Z working area

1300*2500*250mm

Table size

1300*2500mm

Working accuracy

0.02mm

Repeat position accuracy

0.05mm

X,Y,Z Transportation

X,Y axis is Rack Gear , Z axis is Ball screw

Bed Structure

Top structural aluminum profile

Max. Running Speed

8m/min

Max, Engraving Speed

6m/min

Spindle

4.5kw water cooling spindle

Spindle Speed

0-24000rpm

Driver motor

High Speed stepper motor / Servo motor

Working voltage

380V/50HZ, Three phase

Engraving order

G code,U00,mmg,plt

Control system

Nc studio system

Software running environment

Windows98/2000/XP

Machine power

2kw(without spindle)

G.W/N.N

1400KGS/1000KGS

Machine size/Packing measure

2700*1700*1400mm/3200*2000*1500mm


double head stone router belongs to Stone Machine , its used for stone cnc engraving, granite carving,

tombstone making etc. is also called stone cutting,Laser Cutting Machine and engraving machine. Cnc Stone Router is widely used in architectural building,

arts crafts industry etc. If you need Stone Machinery , welcome to choose Cnc Stone Carving Machine.

WE are 15 years factory in china, can provide comfortable service for you.

Features:

1.Taiwan linear square guide rail, to ensure the accuracy and stability of the mechanical operation.
2.The bed is thicker steel structure, strong bearing capacity can reach more than a ton, durable without deformation.
3.The entire dust structure, effective protection of dust or water erosion of the guide rail and lead screw, improve the life of the machine tool.
4.High power 4.5kw water cooled spindle, the use of imported bearings configuration, low noise, high power, long life.
5.The macro control, computer independent cabinet, beautiful appearance, convenient operation.
6.Rack drive, high precision, long life.
7.With a sink, two-way cooling tool, effectively improve the life of the tool.
8.External rotation axis can be the largest 400*2000mm cylindrical engraving.

9.Software compatibility is good, can be compatible with a variety of CAD/CAM, such as Type3/Artcam/Castmate/ design software.

Application:Stone Machinery For Sale Granite,marble and blue-stone,sandstone,glass and tile ans other stone`s flat engraving and column engraving.


Workshop and samples:

Img 20180127 135907

Img 20180303 101725

Stone Engraving Machine

FAQ

1.Can I get a Wood Laser Engraving Machine according to my own requirements?
Sure.We can change the type and color and appearance of the machine according
to your preferences and requirements, so that we can satisfy you.
2.I am a new machine operator. Do you provide training?
Don't worry. Our company provides free training for every customer until the church.
3.What's the quality of your machine?
Yes, our machine adopts heavy lathe bed, and each part is processed by
fine machining, which greatly improves the accuracy of machine operation.
4.My machine is broken. Can you repair it for me?
Of course.If there is any trouble with your machine, don't worry. We will arrange
our professional maintenance staff to repair the machine until it is repaired.



Looking for ideal 3d Stone Cutting Router Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cnc Stone Carving Machine 3d are quality guaranteed. We are China Origin Factory of Industrial Stone Cutting Machines. If you have any question, please feel free to contact us.
