JINAN HT MACHINERY CO.,LTD

big spindle stone machine
big spindle stone machine
big spindle stone machine
big spindle stone machine
big spindle stone machine

big spindle stone machine

Unit Price: USD 5500 - 5900 / Set/Sets
Payment Type: T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Add to Basket

Basic Info

    Model No.: CX1325

    Certification: CE, ISO 9001

    Usage: Stone

    Current: AC

    Power: High Power

    Control: CNC

    Drive Type: Stepper Drive

    Machine Frame: Heavy Duty I Frame, Can Bear 5000kgs Weight Stone

    Working Table: T-slot Table

    Max. Rapid Travel Rate: 25000mm/min

    Max. Working Speed: 15000mm/min

    Spindle: 5.5kw Water Cooled Spindle

    Spindle Speed: 0-24000rpm

Additional Info

    Packaging: package by strong wooden case

    Productivity: 100 Set/Sets per Month cnc sto

    Brand: sameng

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 100 Set/Sets per Month cnc stone engraving

    Certificate: CE ISO

    Port: Qingdao Port

Product Description

Product Application:

Stone Cnc Router engraving machine can engrave on natural, marble, stone , crystal , micro lite, man-made stone, glass, murals , village monument ,

tombstones , milestones , decorative skirting line and some other kinds of stone. Used for architectural industry, decorative, kitchen and bathroon, outside living etc.



Stone Cutting And Engraving Machine is one of our best products. Stone Engraving Machine is suitable for our life.

It can be regard as the Cnc Stone Carving Machine, also named Normal Model Stone Machine. used for kitchen table and various stone arts.

If you want to add rotary axis, we will recommend Column Engraving Machine.

Now, Are you interested in our Stone Engraving Cnc Machine?


Main Features:

1. The 1325 cnc router stone is a normal model of heavy stone flat engraving machine.

2. Machine bed adopt joist steel that improve the load-bearing capacity which can bear more than 2 tons.

3. The bed inside uses stainless steel that can greatly prolong the working life of the machine.

4. The machine uses the domestic and foreign high-end installation kit and the lathe bed gantry that made by machining center to ensure the machining accuracy of the machine.

5. The new three shaft waterproof and waterproof design, easy to remove, repair and maintenance.

Machine Specification:

X Working Area

1300mm

Y Working Area

2500mm

Z feeding height

450mm (Z gantry to machine table height is 450mm, working size is 400mm)

Machine frame

Heavy duty I frame, can bear 5000kgs weight stone

Traveling Positioning Accuracy

±0.05mm

Repositioning Positioning Accuracy

±0.05mm

X,Y ,Z Structure

XY gear wheel, Z ball screw. All Axis use Square Guide

Working table

T-slot table

Max. Rapid Travel Rate

25000mm/min

Max. Working Speed

15000mm/min

Spindle

5.5kw water cooled spindle

Spindle Speed

0-24000rpm

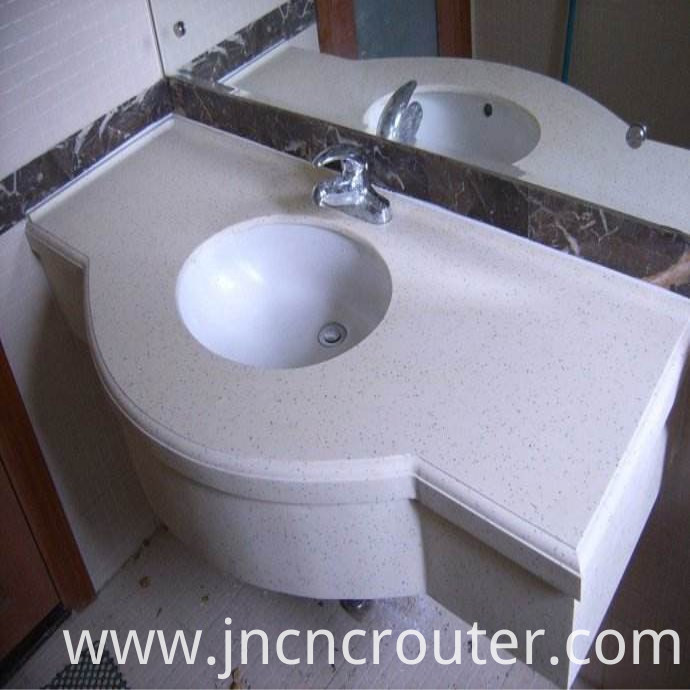

Samples:

cnc carving machine for stone

Cnc Router For Stone
Package&Shipping:

cnc carving machine for stone

Our Service:

cnc carving machine for stone

Contact Way:

stone engraving machine


Looking for ideal Marble Processing Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Granite Cutting Machine Router are quality guaranteed. We are China Origin Factory of Cnc Marble Cutting Machine. If you have any question, please feel free to contact us.

Product Categories : Stone Machinery > Normal Model Stone Machine
