Superstar CO2 CNC Laser CUTTER

Share to:
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 7 Days

Basic Info

Model No.: CX6090

Application: Leather Industry, Domestic, Carpentry, Printing & Packaging, Construction Industry, Molds & Dies, Crafts Industr, Advertising Industry, Other

Cooling System: Water Cooling

Technical Class: Pulse Laser

Automatic Grade: Automatic

Applicable Material: Nonmetal

Type: Oscillating Mirror

Laser Classification: Gaseous Laser

Engraving Method: Vector Engraving

Working Size: 600mm*900mm

Working Table: Honeycomb Or Knife Table

Laser Type: CO2 Laser

Cutting Speed: 1-1000mm/Min

Control System: DSP

Min Line Width: 0.15-0.3mm

Engraving Speed: 1-6000mm/Min

Location Precis: 0.015mm

CNC Or Not: CNC

Origin: China

Additional Info

Packaging: plywood cases

Productivity: 5000 sets

Brand: Super star

Transportation: Ocean,Land,Air,combined

Place of Origin: China

Supply Ability: 1000 sets per month

Certificate: ISO/CE

HS Code: 8456110090

Port: Qingdao

Product Description

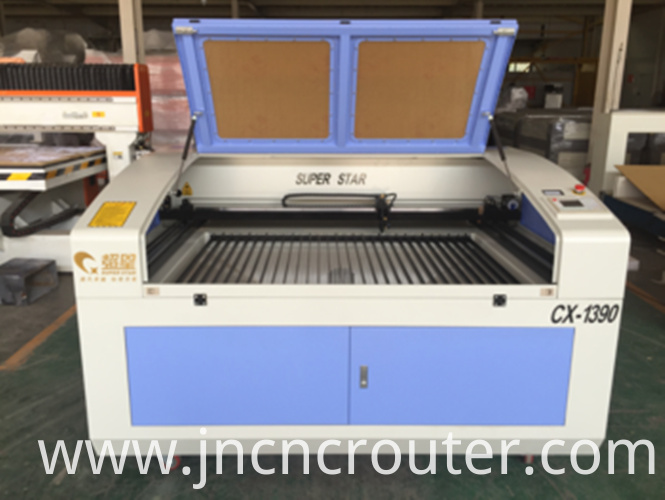

6090 mini Co2 Laser Engraving Machine

Htb1x9jubh8x3kjjszpi763edfxaa Png 350x350

Co2 Laser Engraving Machine Feature:

1) Co2 Laser Cutting Machine is closed circulation chain stainless steel working bench.

2) Jewelry Engraving Machine: Video collecting card adopting high-quality draw code technology.

3) Software designing of the shortest route for cutting make a video recording and pickup positioning automatically.

4) The visual system of pickup position and make video recording working cooperate with computer software.

5) Co2 Laser Cutting Machine adopting high quality stepping motor.

Parameter of co2 Laser Machine

Name:

co2 laser cutting machine 6090

Processing area

900mm*600mm (3feet*2feet)

Laser power

80/100/130/150/180W

Laser type:

Sealed Co2 laser tube

Resetting positioning accuracy:

±0.01mm

Compatible Software:

Laser cut 5.3, CorelDraw, AutoCAD, Photoshop

Whole machine size:

1420mm*1020mm*1150mm

Engraving speed

1-6000mm/min

Cutting speed

1-1000mm/min

Cutting thickness

0-20 mm acrylic (others determined by materials)

Resolution ratio

≤0.0125mm

Position system:

Red dot

Interface:

USB

Minimum shaping character

letter 0.8mm, Chinese 2mm

Support graphic format

DST, PLT, BMP, DXF

Gross power

1000W

Driving mode:

DC0.8A 24V stepper motor

Cooling mode:

Circulation water cooling

Working voltage:

AC 110 - 220V±10%, 50 - 60Hz or depend on customer

Operating temperature

0-45C

Operating humidity:

5-95%

Driving system

stepper

Option:

Up and down table, rotary attachment

Packing:

wooden box

Guarantee time:

2 years, laser tube 10 months

Option:

Rotary attachment for column materials

Operation:

Video to tell customer how to operate the machine

Net weight:

190KGS before package, 240KGS after package

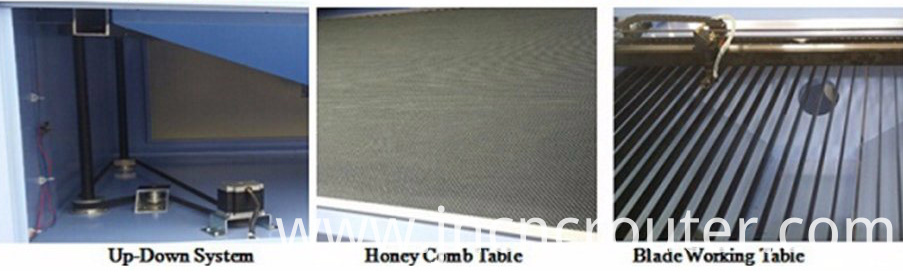

Machine Details:

LASER PARTS1

Samples completed by Jade Engraving Machine:

For materials: Co2 Laser Cutting Machine apply to leather, cloth anticipates, rubber, plastics, the wood of bamboo, bag clothing, shoe,etc.

samples

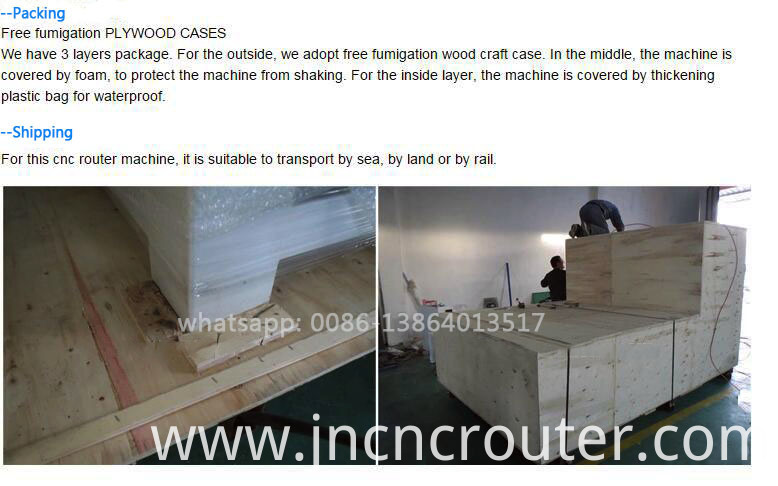

Packing and Shipping:

1. Standard plywood case, its compressive strength and bearing quality is better.

#Delivery Detail: within 7-15 days after received your payment

CNC-Fiber-Laser-Cutter-for-Stainless-Steel
FAQ

Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It's very easy, not complicated. we provide user manual of software with the machine. According to customers' requests, we can send our technician to customer' plant for machine training or customers can come to our plant for machine training if needed.

Q: In case machine exists the problem, how to do after sales service?
A: We provide two years machine warranty. During the two-year warranty, in case of machine exists the problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall on our warranty list. After the warranty, we still provide lifetime service.

Q: What's delivery time?
A: Generally speaking, lead time is 5-7 working days after receiving the payment.


After service:

1. 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
5.24 hours on line service each day, free technical support.
