4 Spindle Multy Head Woodworking CNC Machine

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: 1315

Certification: CE, ISO 9001

Usage: Woodworking, Advertising, Other

Current: AC

Power: High Power

Control: CNC

Drive Type: AC Servo Drive

Additional Info

Packaging: wood package

Productivity: 100 sets/month

Brand: Super star

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 100 sets/month

Certificate: CE ISO SGS

HS Code: 8465990000

Port: Qingdao Port

Product Description

Engraving Cnc Machine with Two Warranty

Feature:


1)This Multi Heads Woodworking Machine with 8 rotary axis is with removable Cnc Router Table , so, when you cut and engrave the flat plane, just need to put on this table; when you do the column / round / cylinder, just need to take down themoveable table.

2)Wood Cnc Router Machine with Multi spindles can work at the same time,also can work alone, many times increasing inefficiency. can also control the machine heads independently, can use only one head to process and make increasing the working.

3) Cnc Wood Door Engraving Machine with Weld steel machine body, annealing treated;Cnc Rotary Die Making Machine

4) Independent and totally enclosed electric cabinet, more stable, long life; Wood Rotary Die Making Machine

5) XYZ axis transmission by ball screw; Cnc Lathe Wood Machine .Cnc Metal Engraving Machine

6) Strictly test horizontal degree and vertical degree with dial gauges;wood cnc router machine

5) Shipped with totally assembled and ready to work.cnc wood door engraving machine



Application:

3D Cnc Machine mainly Carving3D Europe Old Sculpture Furniture, Sofa, Table ,Chair.

This is Advertising Machine also called Cnc Wood Milling Machine with competive price,its mainly thing is the Wood Cnc Machine has four aixs that means the head of Router CNC Wood will be swing 180 degree when the Wood Cnc Lathe Machine working with more efficiency.



Parameters:

Model

CX1325 4 axis cylinder engraving machine

Repeatability

0.05mm

Processing accuracy

±0.2mm

Working area

Diameter:200mm, length:2000mm

Transmission type

XYZ ball screw

Spindle power

3.0kw air cooling cooled spindle*8

Spindle speed

0-18000r/min

Max.rapid speed

30000mm/min

Max.processing speed

6000mm/min

Control system

DSP A-18 controller system

Drive motor

China servo drive motor on all axis

Ball screw

Taiwan TBI high precision ball screw

Lead rail

Taiwan PMI high precision linear square leadrail with cylinder leadrail

Block

Taiwan PMI high precision block

Rack and pinion

Taiwan high precision grinding helical rack

Bearing

precisely matching NSK bearing

Command language

G code, U00, MMG, NC, PLT, ect.

Dust cover

Dust cover on XY axis

Software

Compatible with Artcut, Artcam, Ucamcan, Type3, Casmate, Atrgrave and almost all other CAD/CAM software

Reducer

Shimpo reducer

Accessory

Operation manual*1

Electric cabinet

Independently and totally enclosed electric cabinet

Oiling system

Automatic oiling system

Machine body

Weld steel with annealing treatment, heavy duty machine body

Package

Inner by stretch film, outside by wood case

Power source

AC380V/3PH/50Hz(customized optional )

Certifications

ISO9001, CE, SGS

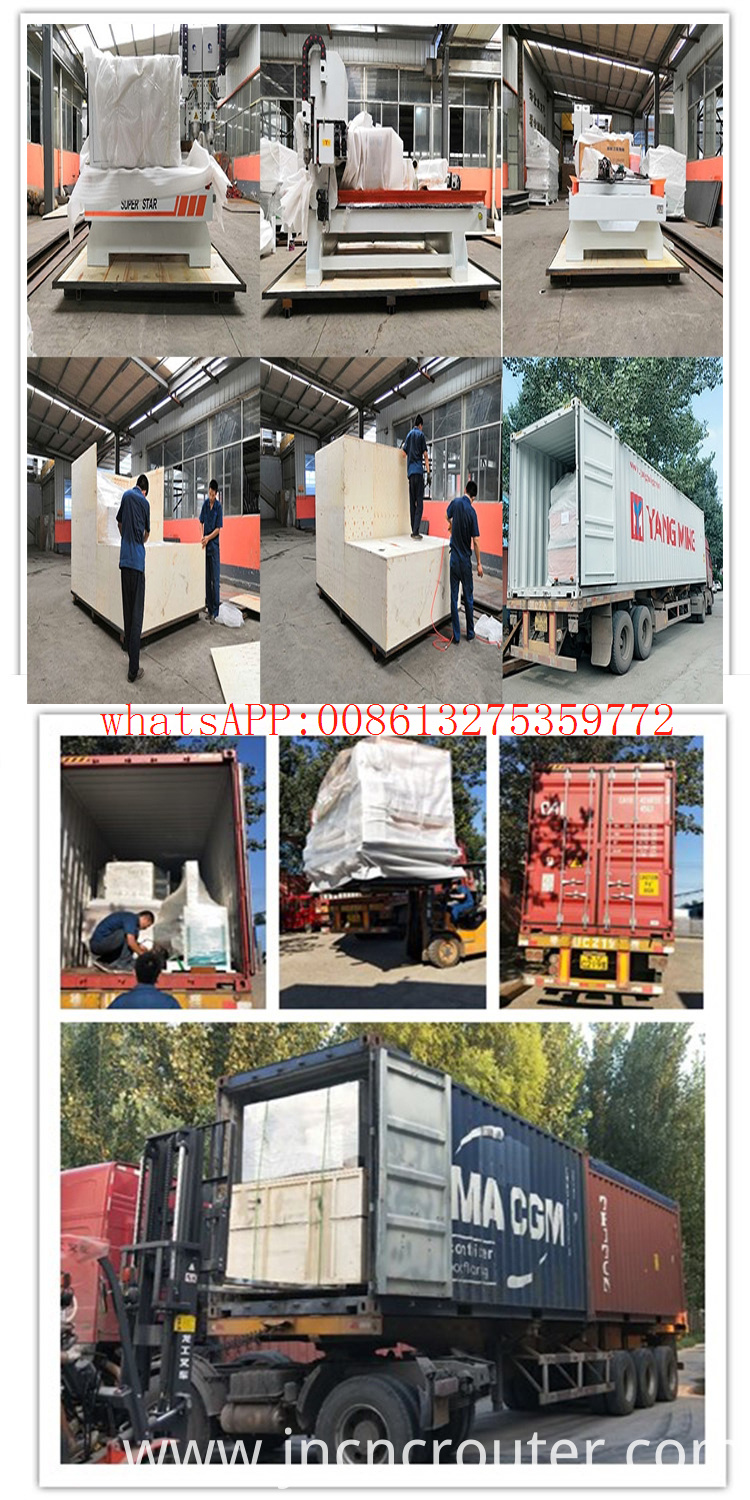

Packaging & Shipping


Factory Details

CNC router factory



Looking for ideal Easy Operation Wood Carving Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 4 Axis Wood Working Cnc are quality guaranteed. We are China Origin Factory of Economic Carving Machine Multi Heads Cnc. If you have any question, please feel free to contact us.
