AC380V/50HZ Pneumatic Tool Changer wood router machine

Share to:
    Unit Price: USD 12000 - 15000 / Set/Sets
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days

Basic Info

Model No.: CX-1325

Certification: SGS, CE, ISO 9001

Usage: Woodworking

Current: AC

Power: High Power

Control: CNC

Drive Type: Stepper Drive

Condition: New

CNC Or Not: CNC

Place Of Origin: Shandong, China (Mainland)

Model Number: M25

Dimension(L*W*H): 1300*2500*200mm

Warranty: 1 Year

Weight: 2000kg

Maxtravelling Speed: 25m/min

MAX Working Speed: 15mImin

Working Accuracy: ±0.05mm

Additional Info

Packaging: wood caving machinery:packing in plastic film or wooden case

Productivity: 100/month

Brand: SUPER STAR

Transportation: Ocean

Place of Origin: JINAN

Supply Ability: 100/month

Certificate: ISO CE

HS Code: HS code 84659900

Port: Qingdao

Product Description

AC380V/50HZ Pneumatic Tool Changer wood router machine


Multi Heads Woodworking Machine Application:



The advantage using Pneumatic Tool Change CNC Router is its high speed of spindle changing or

we call it cutter changing, only takes 2 seconds, you can turn on spindle in advance for warming up;

could using different spindle, from 800w to 6.5kw, do not have to use 9kw ATC spindle to drill holes;

easier maintenance, replace spindle easily; no exist of tool changing problem, will not have to stop

working because of failed tool changing problem, good for mass production line.

Pneumatic Tool Change CNC Router prove you that time is money. High efficiency, easier operation,

low maintenance fee. You only need to install the extra spindle ( ATC spindle is very expensive, while

common spindle is only 30%-60% around of it at the price.

Cnc Router Table Product configuration:


Model

M25 four heads ATC

Working Area (X*Y*Z)

1300mm*2500mm*200mm

Resolution

0.05mm

Control system

NC Studio

Transmission mode

Rack drive for X Y axis and Screw drive for Z axis

Guide rail

Original TBI from Taiwan(Optional)

Software operating environment

Windows2000/XP/98

Carving instructions

G-Code/HP-GL

Power for machine (Without spindle)

1500W

Spindle

6.0KW*1+4.5KW*2

Spindle speed

0-24000rpm/min

Voltage

AC380V/50HZ

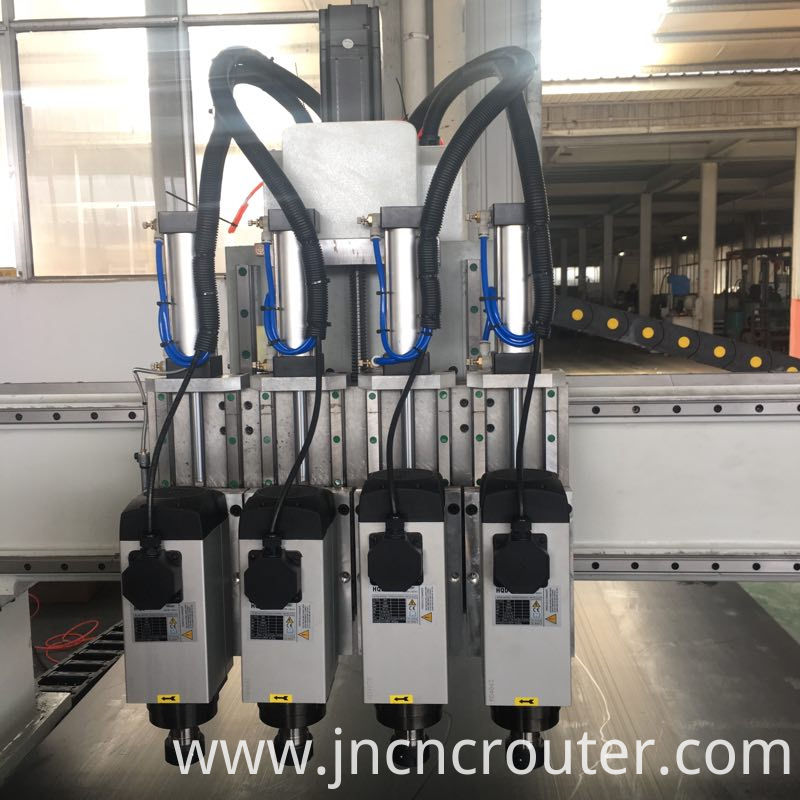

Product picture:

cnc router woodworking machine for sale


Wood Cnc Router Machine Packing and shipping:

cnc router woodworking 3d

After-sale service:

cnc router woodworking 5 axis
cnc router woodworking india


Company information

Jinan Jinshengxing Machinery Manufacture Co., Ltd. was founded in 2003, dedicated to manufacture

Woodworking Machine, such as 3d cnc router, Cnc Wood Door Engraving Machine,Single Head Woodworking

Machine, Cnc Wood Milling Machine automatic tool changer cnc router, cnc router with CCD Wood Cnc Lathe

Machineand Oscillating knife cutting head. etc.



Own 70000 square meters factory, 3 production base

300 workers 50 overseas servicing engineer

has 10 overseas warhouse in pakistan, uzbekistan, vietnam, south africa, kazakstan,

kenya, myanmar, thailand, turkey and russia. Customers from these countries can take

stock machine immediately after pay case, and local servicing person will help you

install machine and provide training.




Pneumatic Tool Changer

cnc router superstar

cnc wood router amazon

Looking for ideal Wood Furniture Design Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Pneumatic Tool Changer Machine are quality guaranteed. We are China Origin Factory of Multi Heads Woodworking Machine. If you have any question, please feel free to contact us.
