JINAN HT MACHINERY CO.,LTD

4-axis Wood Cnc Router,Wood Working Cnc,Cnc Woodworking Router

Home > Products > Woodworking Machine > Multi Heads Woodworking Machine > High Quality Model 4 Spindle Wood Cnc Router

High Quality Model 4 Spindle Wood Cnc Router

Share to:
    Unit Price: USD 20000 - 5000 / Set/Sets
    Payment Type: L/C,T/T
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 25 Days

Basic Info

Model No.: CX-1325

Certification: SGS, CE, CE SGS ISO

Usage: Woodworking

Current: AC

Power: High Power

Control: CNC

Drive Type: Stepper Drive

Conditio: New

CNC Or Not: CNC

Place Of Origin: Shandong, China (Mainland)

Brand Name: Superstar

Voltage: 380V

Warranty: One Year

Package: Wooden Case

Spindle Power: 4.5KW

Table Siz: 1300x2500mm

Additional Info

Packaging: wooden package

Productivity: 100/month

Brand: SUPER STAR

Transportation: Ocean

Place of Origin: JINAN

Supply Ability: 100/month

Certificate: ISO CE

Port: Qingdao

Product Description

High quality model 4 spindle wood cnc router/Multi Heads Woodworking Machine

Cnc Router Table Applicable industry and material :


Furniture: wooden doors, cabinet, plate, office and wood furniture, tables, chair, doors and windows.

The wood products: voice box, game cabinet, computer tables, sewing machine table, instruments.

The plate processing: insulation part, plastic chemical, PCB, inner body of car, bowling tracks, stairs, anti-fold special plate, epoxy resin, ABS, PP, PE and other carbon mixed compounds

Single Head Woodworking Machine and Wood Sculpture Machine

Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metal such as copper,

aluminum plate engraving and milling process.


technical parameter of Wood Cnc Router Machine

Description & Specifications:

X Working Area

1300mm

Y Working Area

2500mm

Z Working Area

200mm

Traveling Positioning Accuracy

±0.05mm

Repositioning Positioning Accuracy

±0.05mm

Table Surface

Vacuum table with T slot PVC

X,Y ,Z Structure

XY gear wheel, Z ball screw

Max. Power Consumption(Without spindle)

1.84KW

Max. Rapid Travel Rate

25000mm/min

Max. Working Speed

15000mm/min

Spindle Power Motor

5.5KW air-cooling

Spindle Speed

0-24000r/min

Drive Motor

Taida Servo

Driver

DMA860H,450C

Variable frequency driver

5.5kw(22v) Sifang Driver

Command

G-code*.u00*.mmg*.plt

Working voltage

AC380V/50Hz

Control System

NK200 and with hand holder

Guide rail

25 Square rail (TAIWAN BRAND:TBI)

Control cabinet

Independent cabinet

N.W./G.W.

1100/1300KGS

Packing Size

3200*2100*1800mm


7788




Some Samples of Cnc Wood Door Engraving Machine:


HTB1gxGYFpXXXXXJaXXXq6xXFXXX2

HT11H8tFUBdXXagOFb

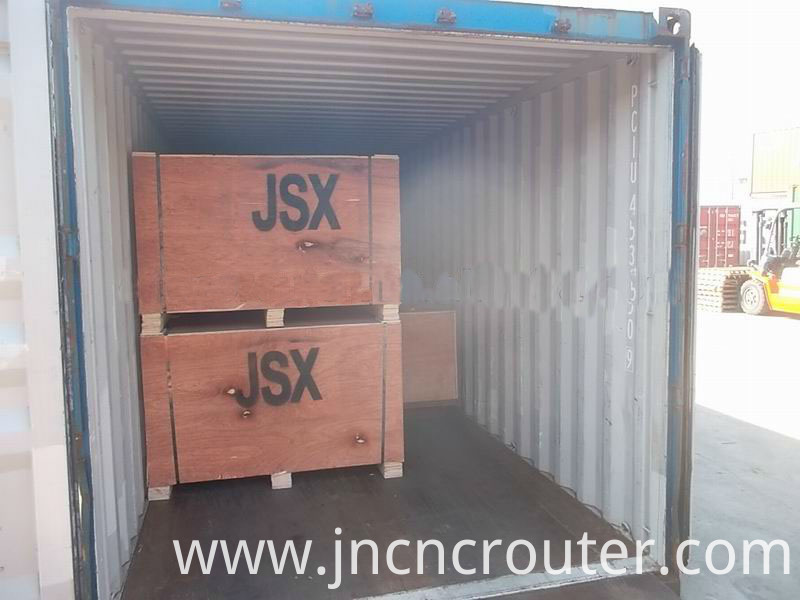

Packing delivery:

543959848_600


234


258

Looking for ideal 4-axis Wood Cnc Router Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Wood Working Cnc are quality guaranteed. We are China Origin Factory of Cnc Woodworking Router. If you have any question, please feel free to contact us.
