JINAN HT MACHINERY CO.,LTD

1530 metal cutting machine
1530 metal cutting machine
1530 metal cutting machine
1530 metal cutting machine
1530 metal cutting machine

1530 metal cutting machine

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Add to Basket

Basic Info

    Model No.: 1530

    Application: Advertising Industry

    Cooling System: Other

    Technical Class: Continuous Wave Laser

    Applicable Material: Metal

    Structure Type: Gantry Type

    Laser Classification: Gaseous Laser

    Laser Technology: Laser Control Fault Cutting

Additional Info

    Packaging: wood package

    Productivity: 100 sets/month

    Brand: Super star

    Transportation: Ocean,Land,Air

    Place of Origin: China

    Supply Ability: 100 sets/month

    Certificate: CE ISO SGS

    HS Code: 8479899990

    Port: Qingdao Port

Product Description

Fiber Laser Metal Cutting Machine for ss cs aluminum brass

Parameters:

Machine Model

CX-1530 500w Fiber Laser Cutting Machine

Max. working area

1500*3000mm

Cutting thickness

0.2-3mm stainless steel / 0.2-6mm carbon steel

Laser wavelength

1064nm

Laser head

Shanghai Jiaqiang laser head

Out put Power

500W Raycus fiber laser source (10-100%)

Water chiller power

CW6100 water chiller

Guide rail

Taiwan TBI 25mm Square rail

XY axis Motor

Japan Yaskawa servo motor

Reducer

Japan shimpo reducer

Oil system

Electric oil filling system

Guide rail

Taiwan TBI 25mm Square rail

Z axis Motor

Japan Yaskawa servo motor

Controller system

Cypcut controller

X,Y-axis fast moving speed

80m/min

X,Y-axis max. cutting speed

20m/min

Min. cutting line width

± 0.02mm

positioning accuracy

±0.05mm/m

Positioning speed

20m/min

Aiming positioning

Red light

Power consumption of the whole machine

12KW

Auxiliary cutting gas

Oxygen, nitrogen and air

Machine weight

2500KG

Whole machine floor space

4800x2600x1800mm


Advantage of Fiber laser:

1,Industrial Foam Cutting Machine Cheap Foam Machine High electro-optical conversion efficiency, Fiber Laser Cutting Machine Price 300% more efficient than CO2 laser

2, Fiber Laser Cutting Machine 1000w Low operating and maintenance cost, only 6% of CO2 laser

3,Stainless Fiber Laser Cuttin Machine High cutting speed, Fiber Laser Cutting Machine 600%~1000% faster than CO2 laser

4, Small in size, light in weight, mobile working position, minimum space requirement

WHY CX-LASER:
Fiber Laser Cutting Machine Price Stable Z-axis and auto focus system
The laser head equipped with Laser-Mech(Made in U.S.A) capacitor non-contact AUTO-FOCUSING system,
Able to adjust focal length automatically, guaranty the best cutting quality, prevent material scrapping caused by changing of focal length when metal is not flat
Due to non-contact sensing device, when controlled by system, able to achieve stable Z axis floating function, eliminate negative effects caused by non-flat material
Machine shell / Host machine
CX-LASER large scale cutting machine weight 3.7 tons. We take producing cost, machine stability and machine quality all into consideration. After several times redesign we decide the final simple but strong design. Which produced by professional large scale equipment from military level industry, and passed aging treatment, can guaranty durability for long term use.
Transmission
Machine equipped famous brand high precision ball-screw system, linear guide and motor servo drive system, can guaranty the processing precision. The transmission system can match the CNC control system smoothly.
Control system
Use professional IPC, optimization cutting calculate system, touch screen easy to use, professional cutting software can design all kinds of graphic, text, support CAD, CorelDraw.

Certifiacte:

Fa213378e729be94a1c6272bed8329e

Company:

8205ccf86e89a48877edda8acf45af6



Product Details

2

Fiber laser machine

Fiber laser machine


Packaging & Shipping

Fiber laser machine

Our Services

Guarantee and After-sale service of the Metal Cutting Machine Laser Metal Cutting Machine:

1. 12 months warranty for the machine.

2. Technical support by phone, email or WhatsApp/Skype within 24 hours


3. Friendly teach you how to operate the machine

4. Engineer available to service machinery overseas.

Feedback from our customersFeedback from our customers:

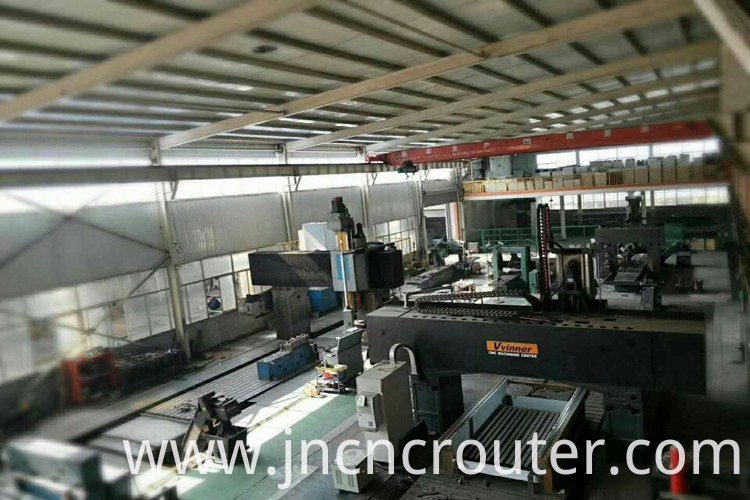

Factory Details




Looking for ideal 3000w Aluminum Stainless Steel Cutting Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 3kw Stainless Steel Carbon Steel Cutting are quality guaranteed. We are China Origin Factory of 3kw Aluminum Brass Cutting Machine. If you have any question, please feel free to contact us.
