JINAN HT MACHINERY CO.,LTD

Stone Engraving Cnc Machine

,Stone Engraving Cnc Router,Stone Cnc Router

Home > Products > Stone Machinery > Column Engraving Machine > CXS-3D Stone Column Engraving Machine

CXS-3D Stone Column Engraving Machine

Share to:
    Unit Price: USD 10000 - 8000 / Set/Sets
    Payment Type: L/C,T/T
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 25 Days

Basic Info

Model No.:  CX3D-2-600-2000

Type: CNC Cutting Machine

Usage: Granite, Marble

Application: Machinery & Hardware, Stone Industry

Source Voltage: 380V

Automation: Automatic

Cutting Ability: High Speed

Control: CNC

Certification: CCC, ISO, CE

Model: CX3D-2-600-2000

Working Area: Column Engraving:2*600*2000mm

Working Power Supply: AC380V/±10%,50HZ

Cooling Method: Water-cooling

Repeat Accuracy: 0.02mm

Transportation: 3 Axis For Ball Screw

Control System: DSP/NC Studio

Spindle Power: 5.5KW*2 PCS

Whole Power: 13kw

Additional Info

Packaging: wooden package

Productivity: 100/month

Brand: SUPER STAR

Transportation: Ocean

Place of Origin: JINAN

Supply Ability: 100/month

Certificate: ISO CE

Port: Qingdao

Product Description

CXS-3D Stone Column Engraving Machine

column engraving machine Features:


Stone Engraving Cnc Router is a kind of Stone Cnc Router

1.stone machine bed is processed by 5 axies ATC solution, and which is treated by heat aging and relieved residual stress to get good rigidity, stableness and high precision.

2.Three axises by ball screw transportation, adopt advanced electrical parts and control system. Machine idle stroke speed is 20m/min, running speed is 15m/min.

3. The machine uses advanced break-point memory function to ensure when accidental breaking knife, interruption of power or the next day to continue processing.

4.Adopting Taiwan PMI30 guide rail to make sure of high precision and using life.

5.Roll flat engraving and column engraving into one to reduce the user` investment cost.

Product configuration of Stone Engraving Cnc Machine

Model

CX3D-2-600-2000

CX3D-4-300-2000 Round Flat Carving Machine

Working area

Column engraving:2*600*2000mm

Column engraving:4*300*2000mm

Maximum work rate

15m/min

15m/min

Working power supply

AC380V/±10%,50HZ

AC380V±10%,50HZ

Cooling method

Water-cooling

Water-cooling

Repeat Accuracy

0.02mm

0.02mm

Transportation

3 axis for ball screw

3 axis for ball screw

Control system

DSP/NC studio

DSP/NC studio

Order Code

G code, U00, mmg, plt

Spindle power

5.5KW*2 PCS

4.5KW*4 PCS

Whole Power

13kw

20kw

Machine Size

3550X2450x2650mm

3550X2450x2650mm

Net Weight

3000KGS

3000KGS

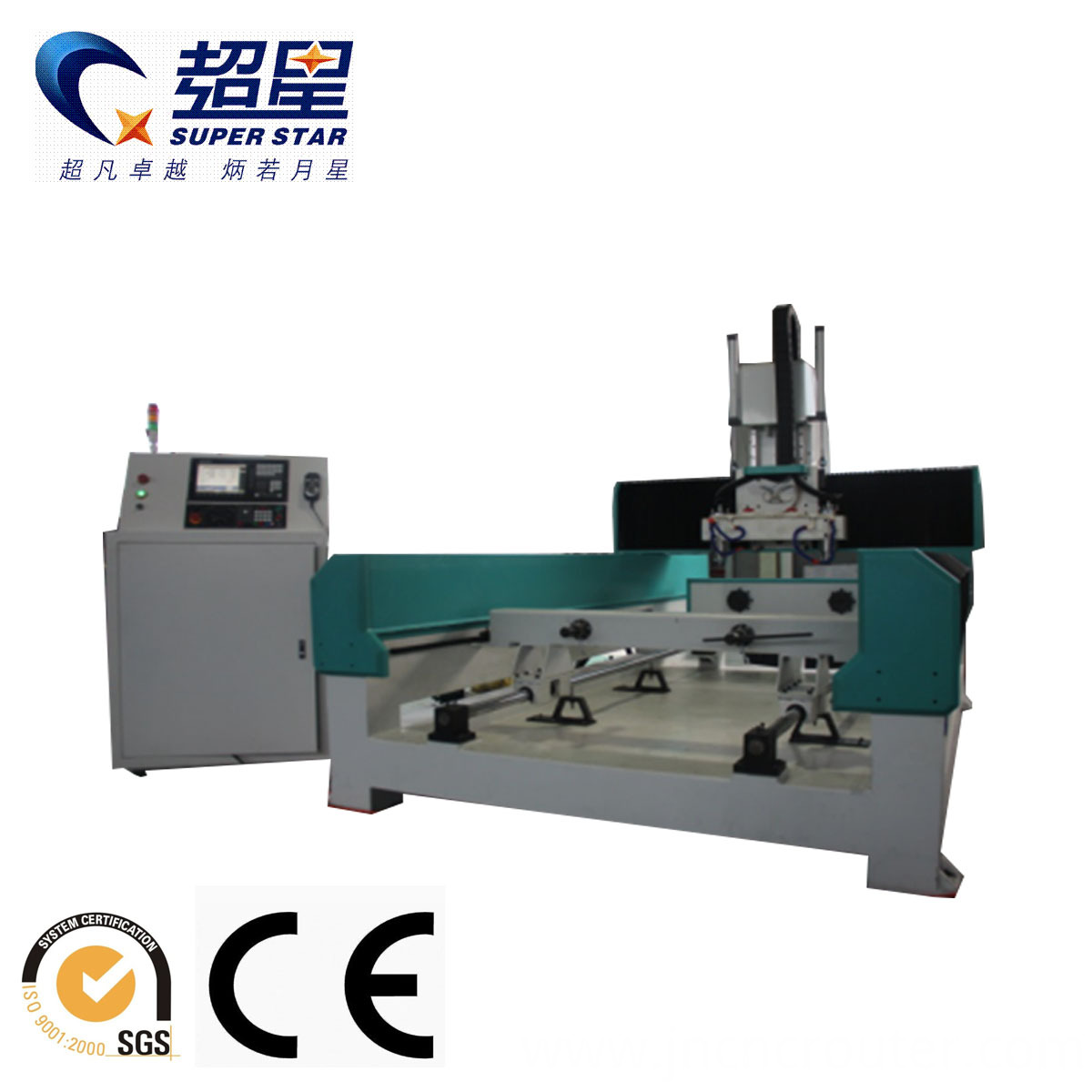

Product picture:



Packing delivery:


540044877_842

After-sale service:

HTB1AQTPXNHBK1JjSZFuq6xRSpXaP


123

258



Looking for ideal Stone Engraving Cnc Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Stone Engraving Cnc Router are quality guaranteed. We are China Origin Factory of Stone CNC Router. If you have any question, please feel free to contact us.
