JINAN HT MACHINERY CO.,LTD

Digital cutter with pressing roller
Digital cutter with pressing roller
Digital cutter with pressing roller

Digital cutter with pressing roller

Unit Price: USD 11500 / Set/Sets
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Add to Basket

Basic Info

    Model No.: CX1625

    Certification: GS, SGS, CE, RoHS, ISO 9001

    Usage: Woodworking, Plastic, Glass, Rubber, Advertising, Mould, Other

    Current: AC

    Power: High Power

    Control: Automatic

    Drive Type: AC Servo Drive

    Working Size: 1600*2500mm

    Model No.: CX1625

    Machine Table: Vacuum Table

    Driving System: Servo Motor And Driver

    Cutting Head: Oscillating Knife /blade

    Transmission: Helical Rack Pinion Or Belt

    Control System: 4 Axis Controller With Touch Screen

    Cutting Height: 50mm

    Application: Textile, Leather, Packaging, Fabric, Rubber, Pu, Foam Etc

    Machine Frame: Heavy Duty

Additional Info

    Packaging: Export fumigation-free plywood case

    Productivity:  100sets

    Brand: SuperStar

    Transportation: Ocean,Land,Air

    Place of Origin: Jinan,China

    Supply Ability: 100sets/month

    Certificate: CE,ISO,SGS,FDA

    HS Code: 8456110090

    Port: Qingdao,Shanghai,Tianjin

Product Description

Digital cutter with pressing roller

Oscillating Knife Cutter

Cnc Oscillating Knife CutterCnc Knife Of Cnc Router


Features:

CNC oscillating knife cutting machine is a kind of cnc digital cutter, it can be added auto feeding device to cut fabric rolls, is called oscillating knife cutting machine, also

can be added pressing roller or creasing device to make carton box, cnc oscillating knife cutting machine also can be added spindle to cut acrylic. and marking pen for

cnc Vibrating Knife Cutting Machine. Its replacement device for co2 Laser Machine, because vibrating knife cutting machine is much kind and friendly for environment.

Besides EVA foam, CNC digital cutter machine can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam,

polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, thermal insulation, model & mock up making, puzzle and

pattern cutting, etc.


Description & Specifications:

X working size

1600mm

Y working size

2500mm

Z working size

50mm, max cutting thickness of material is 50mm

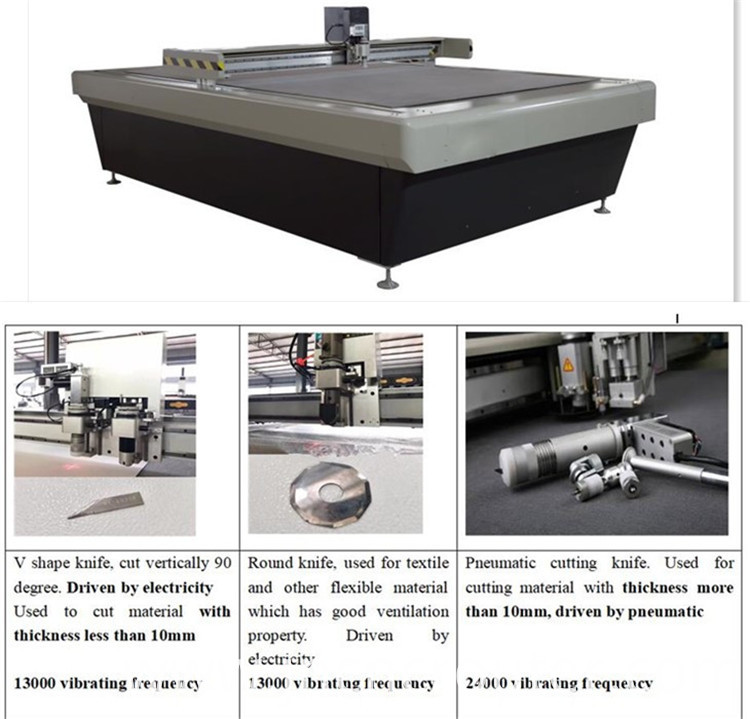

Cutting head

cnc oscillating knife cutting head (can add different head for different application, please refer to instructions from page 6 until end page)

Display way

English LED touch screen

Machine table

Suction Table, suitable for textile, sponge, foam, corrugated board, paper, plastic film and other soft material

Data transfer way

Intel

Vacuum pump

9KW air type vacuum pump

Driving system

Taiwan delta servo driver and motor

Control system

RD control system

Guiding system

Taiwan TBI square rail

Tool sensor

With, red dot

Transmission

Y rack pinion, XZ synchronous steel belt

Cutting speed

30m/min

Traveling speed

50m/min

Weight

About 1200kgs

Size

2250*3300*1650mm

Power

380V 50HZ

Software

Autocad, machine has this software

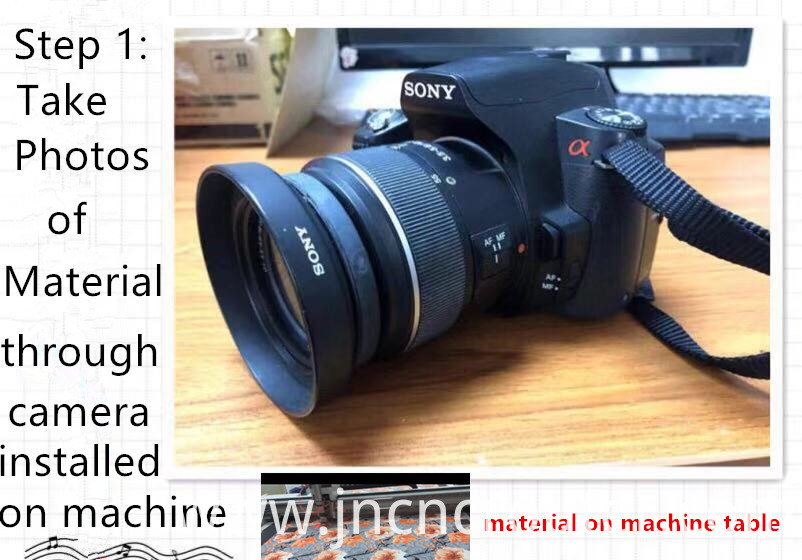

Three steps to Process samples:


Cnc Knife Cloth Cutting Machine

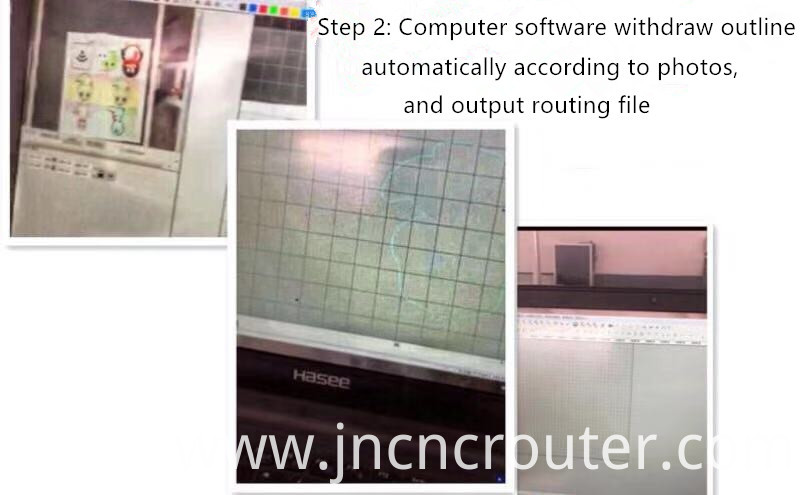

Step 2

Cnc Vibrating Blade Cutting Machine

More Samples:

Cnc Knife Cutter


samples (4)

samples (5)

Customer is testing machine

samples (6)


Advantages of our package for the best selling machinery CNC Oscillating Knife Leather Cutting Machine:

1. Our Wooden Case is after fumigation treatment.Needn`t timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we`ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.

4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

6


Our Services

1. 24 hour Technical support by phone, e-mail or MSN around the clock.

2. Friendly English version manual and operation video CD disk.

3.7-15 working days after down payment or full payment.

4. Machine will be adjusted before it is delivered; operation disk/CD was included.

5. Our technician can give you remote guide online (Skype or MSN) if you have any question.

6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

CNC milling center show:

All Machines are processed by high precision cnc milling center to guarantee machine accuracy:

Img 3790


Company Information:

Jinan Jinshengxing Machinery Manufacture Co.,Ltd specialized in cnc oscillating knife cutting machine, Hot Wire Foam Cutting Machine, Laser Engraving Machine, Laser Cutting Machine, CNC router, Laser Marking Machine etc. we are looking for agents and hope to cooperate with you.

3


If need more information, please feel free to contact us. Welcome visit our factory !


Contact:

name card



Looking for ideal Digital Cutter Machine CX1625 Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Pressing Roller for Carton are quality guaranteed. We are China Origin Factory of Auto Feeding Device Cutting Fabric Rolls. If you have any question, please feel free to contact us.
