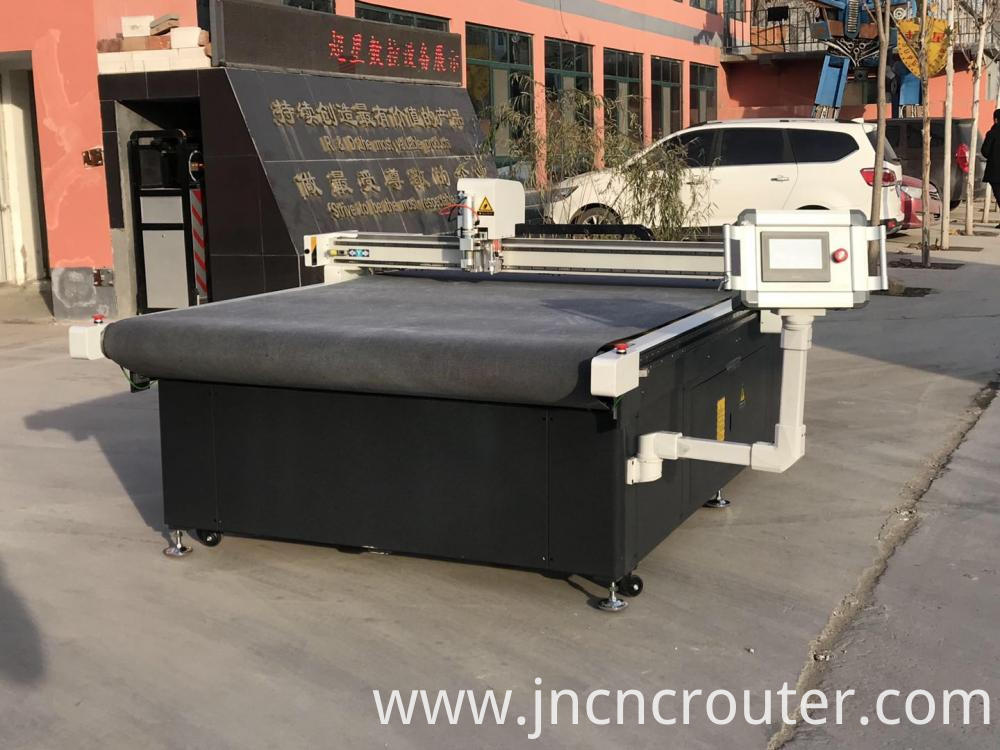

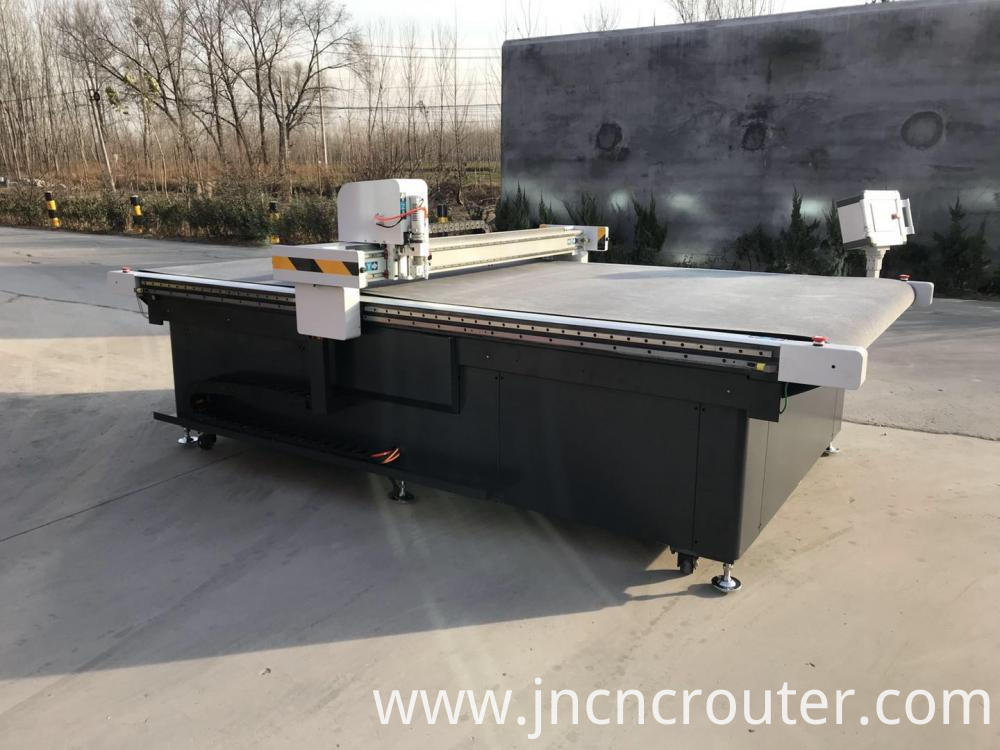

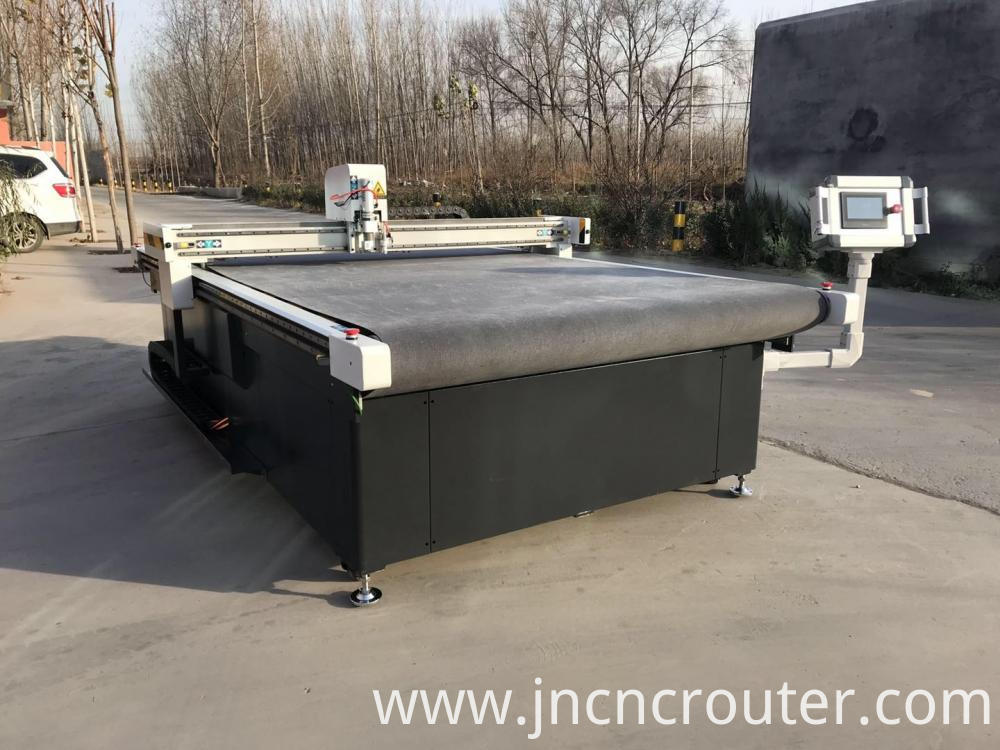

Oscillating knife cutting machine with loading system

Share to:
    Payment Type: L/C,T/T,D/P,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days

Basic Info

Model No.: CX-1625

Model No.: CX1625

Cutting Area: 2500*1600mm

Cutting Speed: 800-1200mm/s

Materials: Leather,、PVC、 Composite Materil

Material Fixed Mode: Vacuum Adsorption

Cutting Precision: ±0.5

Transmission: Taiwan Linear Guide Rail And Rack

Drive Motor: Taiwan Delta Servo Motor

Oscillating Knife: High Frequency Oscillating Knife Vibrati

Working Power: 9KW Air Cooling Vacuum Pump

Additional Info

Packaging: export wooden case

Productivity: 50 sets/month

Brand: Superstar

Transportation: Ocean

Place of Origin: Jinan,Shandong,China

Supply Ability: 50 sets/month

Certificate: CE, ISO9001:2008

Port: Qingdao Port

Product Description

Oscillating Cutting Machine use servo motor, linear guide rail, higher cutting precision;the working table is adsorbed by aluminum plate with strong vacuum adsorption capacity;the life of the plate is 30% longer than similar products in the industry;all parts and components are self-produced, and the after-sales maintenance cost is the lowest in the industry.Exported to southeast Asia, Europe and the United States and other countries.


Technical Parameters of CNC Oscillating Knife Leather Cutting Machine:

Parameters/

model

CX-1625

Operating Characteristic

Computer operation and cutting machine work at the same time, fast completion of data transmission,can be used continuously.

Cutting speed

800-1200mm/s

Materials

leather,.PVC. composite material

Material fixed mode

vacuum adsorption

Cutting precision

±0.5

Transport interface

Standard parallel/serial/network port

Specify the system

HP-GL and GP-GLCompatible format

Control panel

Liquid crystal display contacts

Transmission

Taiwan linear guide rail and rack

Drive motor

Taiwan Delta servo motor

Function

Cutting and positioning cutting

Oscillating knife

High frequency Oscillating knife vibration frequency up to 13,000 times per minute

Cutting area

2500*1600mm

Working voltage

380V+10%,50HZ+10%

Working power

9KW air cooling vacuum pump

material fixed mode

vacuum adsorption for small materials

Knife

Customized special blades according to customers' cutting requirements.

Safe measures

Intelligent anti - collision switch
























Application:

Oscillating Blade Cutting Machine mainly used in paper and plastic packaging, leather, seats, rubber, gasket, furniture, textiles, metals, electronics and other flexible materials.

Ebdbb5cf233373db15b3210ee3fdec897dff4be2ee5bd9949b9dd9a74b601dBa6f704f61c75d1132c3a96725adf45





Samples:

7

Company Information

Super Star CNC machinery group is built in 2003. Dedicated to produce quality machine such as CNC Oscillating Blade Foam Cutting Machine, styrofoam cnc router, Fiber Laser Cutting Machine, Plasma Cutting Machine, woodworking cnc router machine, panel processing cnc router, stone cnc engraving machine and cnc oscillating cutting machine etc.

Workshop:

produce 100 sets Vibrating Knife Cutting Machine every month

All cnc machines frame will be processed by high precision cnc milling machine to guarantee machine accuracy

8

Our Services:

Guarantee and After-sale service:
1. 12 months warranty for the machine.

2. Technical support by phone, email or WhatsApp/Skype within 24 hours

3. Friendly teach you how to operate the machine

4. Engineer available to service machinery installation and assembly overseas.


Good Feedback from customers:

1,Algeria 1625 cnc cutting machine about machine function

2,Australia double head oscillating cutting machine about machine working

3,USA 2530 3 wires cnc Foam Cutting Machine about fast production time

4, Sri Lanka paper cutting machine




Looking for ideal Oscillating Knife Cutter Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Working Table with Loading System are quality guaranteed. We are China Origin Factory of Round Knife for Optional. If you have any question, please feel free to contact us.
