JINAN HT MACHINERY CO.,LTD

Cnc os cillating knife leather cutting fabric machine
Cnc os cillating knife leather cutting fabric machine
Cnc os cillating knife leather cutting fabric machine
Cnc os cillating knife leather cutting fabric machine
Cnc os cillating knife leather cutting fabric machine

Cnc os cillating knife leather cutting fabric machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF,EXW
Min. Order: 1 Bag/Bags
Delivery Time: 15 Days

Add to Basket

Basic Info

    Model No.: CX1625

    Certification: SGS, CE

    Usage: Advertising

    Current: AC

    Power: High Power

    Control: CNC

    Drive Type: Stepper Drive

Additional Info

    Packaging: fumigation-free sea-worthy wooden case

    Productivity: 100 SETS per month

    Brand: SUPER STAR

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 100 SETS per month

    Certificate: CE ISO

    HS Code: 8456110090

    Port: Qingdao,Tianjin,Shanghai

Product Description

vibrating blade leather cutting machine features:


High speed: Only need 80 seconds to finish one set of car foot mat., only need 6 minutes to finish one set of car cushion mattress

High efficiency: don't need any die mould, or die mould cutting machine, this machine can press mark, cutting and moulding on soft material such as leather, carton etc. Save much labor and cost.

Low cost: one machine can do design, cutting instead of manual design and cutting, save labor, and material

wastage cost.

Wide application: This machine can cut leather, PU, fiber, EVA, XPE, sponge cladding, composite cladding, Sponge+drape+composite leather, PVC foot mat, paper, carton, plastic board etc. Soft material.

Good performance: adopt Taiwan TBI ball screw or Wuxi High precision rack pinion, low noise, accurate transmission. Long lifespan and high precision.

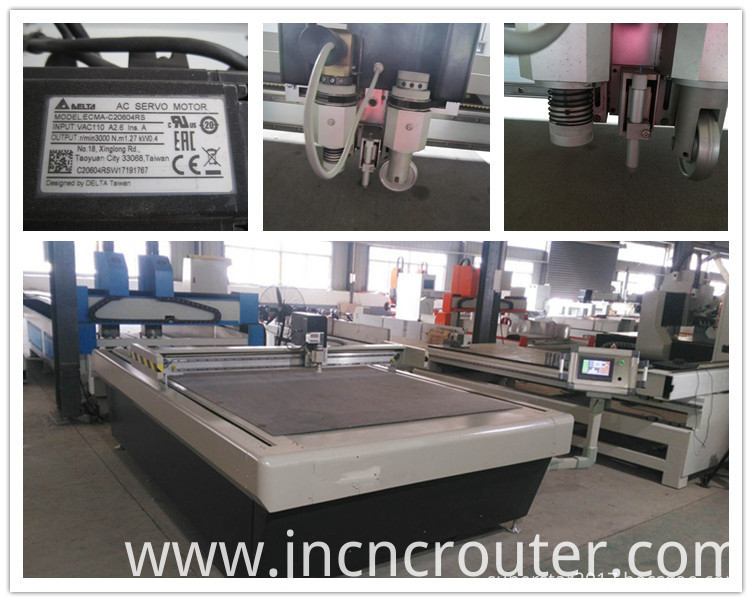

5

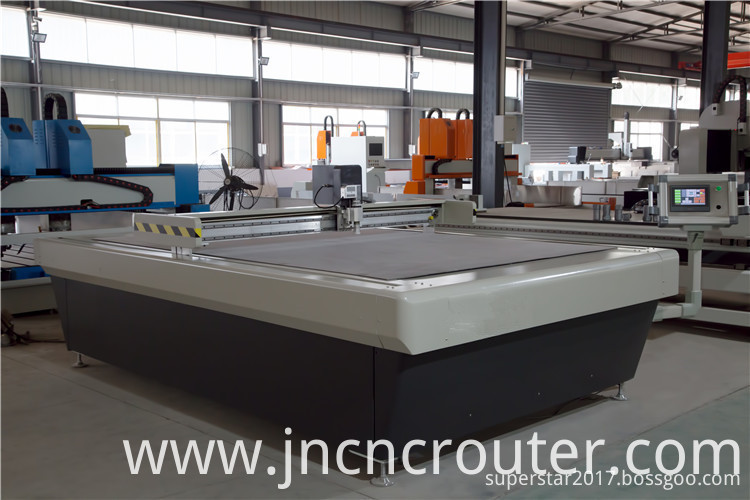

6

cnc oscillating knife cutting machine is a kind of CNC Digital Cutting Machine, it can be added auto feeding device to cut fabric rolls, is called oscillating knife cutting machine, also can be added pressing roller or creasing device to make carton box, cnc oscillating knife cutting machine also can be added spindle to cut acrylic. and marking pen for cnc Vibrating Knife Cutting Machine. Its replacement device for co2 Laser Machine, because vibrating knife cutting machine is much kind and friendly for environment

Technical parameter:

Model

SM1625

X axis travel

1600mm

Y axis travel

2500mm

Cutting speed

800-1200mm/s (cutting material speed is different)

Motor

Taiwan DELTA servo motor

Material fixation

Vacuum adsorption

Cutting precision

±0.5

Transmission interface

standard parallel port / serial port / port

Specify system

HP-GL and GP-GL compatible formats

Control panel

Liquid crystal display contact of numerical

Transmission

belt drive

Function

cutting, positioning and cutting

Cutter head

vibratory cutter fully penetrated cutting

Effective cutting area

2500*1600mm

Working voltage

380V+10%,50HZ+10%

Working power

9KW

Adsorption mode

divided into vacuum adsorption and small batch adsorption.

Safety measures

intelligent collision detection switch, sensitive and reliable, emergency stop switch around.

Platform

Adsorption of aluminum plate

Screw

Taiwan TBI screw

Drive

Taiwan delta drive

Application:

Leather----Foot pad, automative cushion,trunk mat, leather seat cover,
steering wheel cover---- Oscillating knife

PVC---Foot pad, trunk mat---- Drag tool

Fabric----Seat cover---- Wheel-cut tool

Plastic loop----Foot pad, trunk mat---- Oscillating knife

Plush material----Foot mat, trunk mat---- Oscillating knife

EVA----Trunk mat---- Oscillating knife

XPE----Trunk mat---- Oscillating knife

Blended material----Seat cover, foot mat---- Drag tool

Cashmere material computer cutting machine----foot pad trunk box----vibration knife

product description- knife cutter

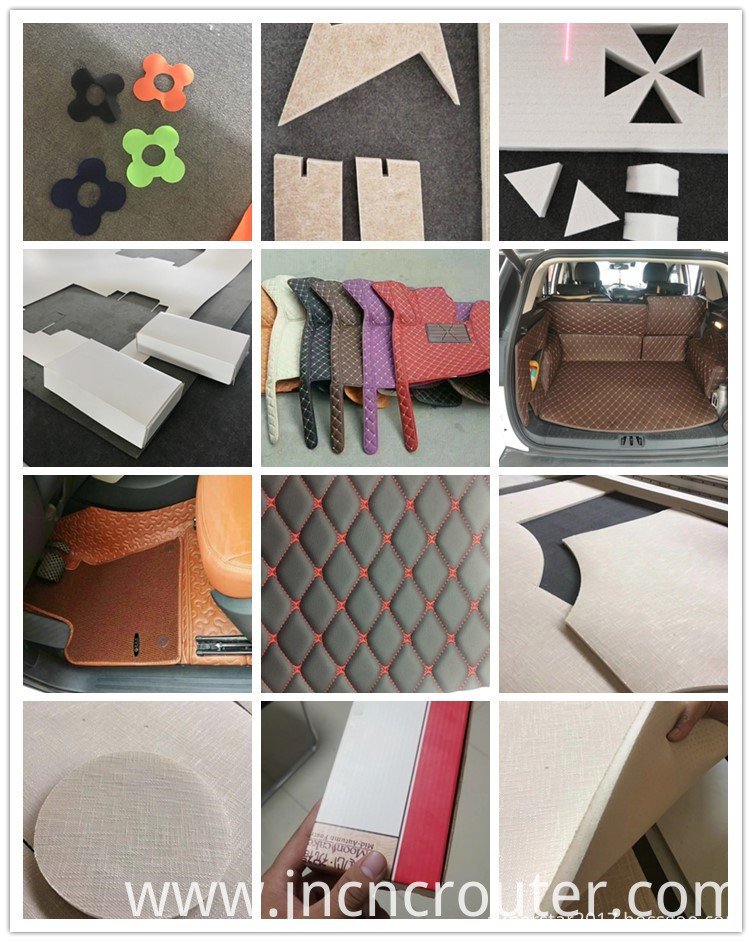

Samples:

7

Our Services

1. 24 hour Technical support by phone, e-mail or MSN around the clock.

2. Friendly English version manual and operation video CD disk.

3.7-15 working days after down payment or full payment.

4. Machine will be adjusted before it is delivered; operation disk/CD was included.

5. Our technician can give you remote guide online (Skype or MSN) if you have any question.

6. Engineers available to service machinery overseas, seller and buyer discuss the charges.


Company Instruction:

Jinan Jinshengxing Machinery Manufacture Co.,Ltd specialized in cnc oscillating knife cutting machine, Hot Wire Foam Cutting Machine, Laser Engraving Machine, Laser Cutting Machine, CNC router, Laser Marking Machine etc. we are looking for agents and hope to cooperate with you.

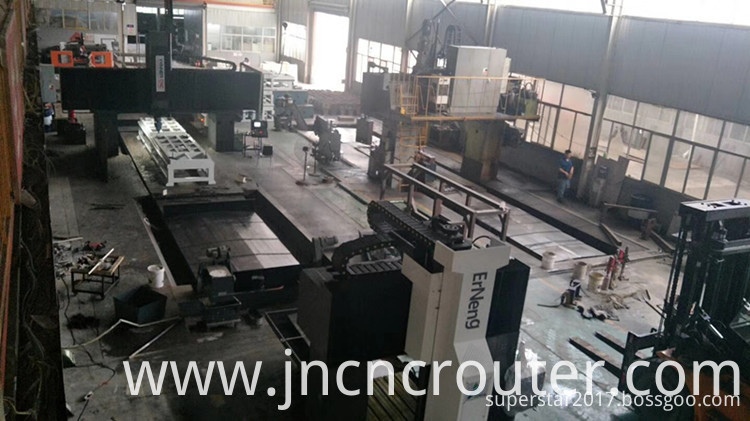

All Machines are processed by high precision cnc milling center to guarantee machine accuracy:

8


Team




Looking for ideal Vibrating Knife Cutter Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Knife Leather Cnc are quality guaranteed. We are China Origin Factory of Super Star Cnc. If you have any question, please feel free to contact us.

Product Categories : CNC Digital Cutting Machine
