Super Star CX1325 Rotary Disc ATC CNC Router
Super Star CX1325 Rotary Disc ATC CNC Router
Super Star CX1325 Rotary Disc ATC CNC Router
Super Star CX1325 Rotary Disc ATC CNC Router
Super Star CX1325 Rotary Disc ATC CNC Router

Super Star CX1325 Rotary Disc ATC CNC Router

Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 Days

Add to Basket

Basic Info

    Model No.: CX1325

    Certification: CE, ISO, SGS, FDA

    Brand Name: Super Star

    Voltage: AC380V/50HZ

    Power(W): HSD 6kw/9kw Spindle

    Dimension(L*W*H): 3300*1900*1900mm

    Motor: Servo Motor

    Working Area: 1300X2500X300mm

    Transmission: Taiwan TBI Square Rail And Ball Screw

    Software: Ucancam / ArtCam/TYPE3

    Inverter: XFT

    Cabinet: Independence Cabinet

Additional Info

    Packaging: Export plywood case

    Productivity: 500sets

    Brand: Super Star

    Transportation: Ocean,Land,Air

    Place of Origin: Jinan,China

    Supply Ability: 100sets/month

    Certificate: ISO,CE,SGS,FDA

    HS Code:  84659900

    Port: Qingdao,Shanghai,Tianjin

Product Description

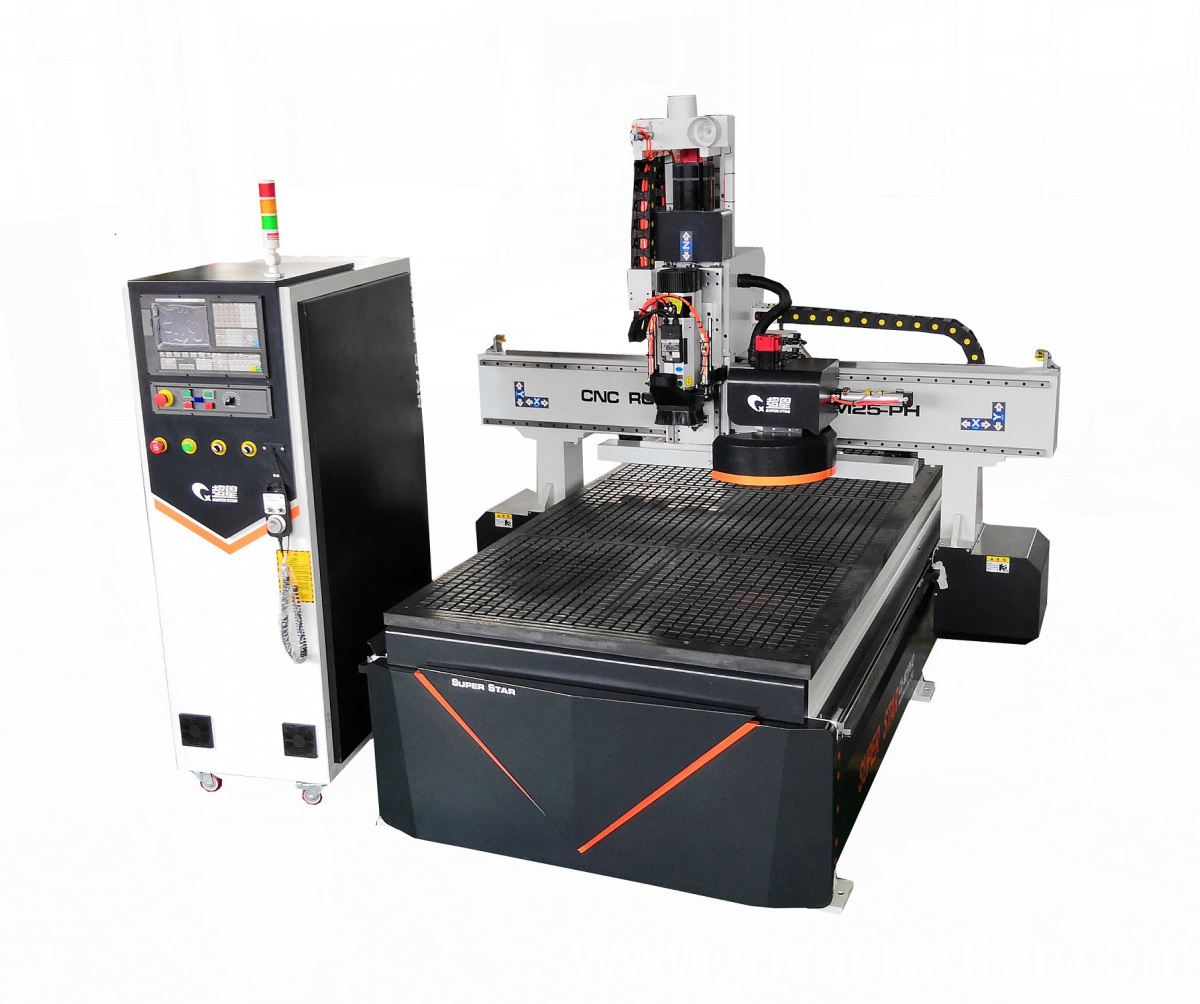

Super Star CX1325 Rotary Disc ATC CNC Router



Product Description Features of Auto Tool Changer Woodworking Machine:

1.Heavy bed body, the bed is treated by the furnace, not easy to deform.

2.It is suitable for carving and making of wooden doors and furniture. Machines can sculpt all kinds of patterns.

3.With oil injection system, the drive part of the Engraving Cnc Machine can be effectively lubricated.


Description & Specifications of Engraving Cnc Machine:

Description & Specifications:

X Working Area

1300mm

Y Working Area

2500mm

Z Working Area

200mm

Table size

1300x2500mm

Traveling Positioning Accuracy

±0.02mm

Reposit Positioning Accuracy

±0.02mm

Table Surface

By vacuum

Auto too changer

Carousel auto tool changer

Tool quantity

Tool magazine,12 pcs

Tools model

ISO 30

X,Y ,Z Structure

XY gear wheel, Z ball screw

Max. Rapid Travel Rate

50000mm/min

Max. Working Speed

25000mm/min

Spindle

HQD 6kw/9kw Air cooling spindle

Spindle Speed

0-18000r/min

Motor

KND Servo Motor

Driver

KND

Command

G-code*.u00*.mmg*.plt

Working voltage

AC 220V/380V

Control System

KND Control System

Guide rail

25 Square rail (TAIWAN TBI/HIWIN )

N.W./G.W.

3000KGS


sample

CERTIFICATES for 3D Cnc Machine

CE cerficificate for European countries

CCVO SONCAP cerficiate for Nigeria customers

FTA certificate for Pakistan customers

SASO certificate for Saudi Arabic customers

Form E certificate for Indonesia and Vietname customers



Ce

Oversea department

Oversea Dept

Good feeback from Customer about Auto Tool Changer Woodworking Machine

2

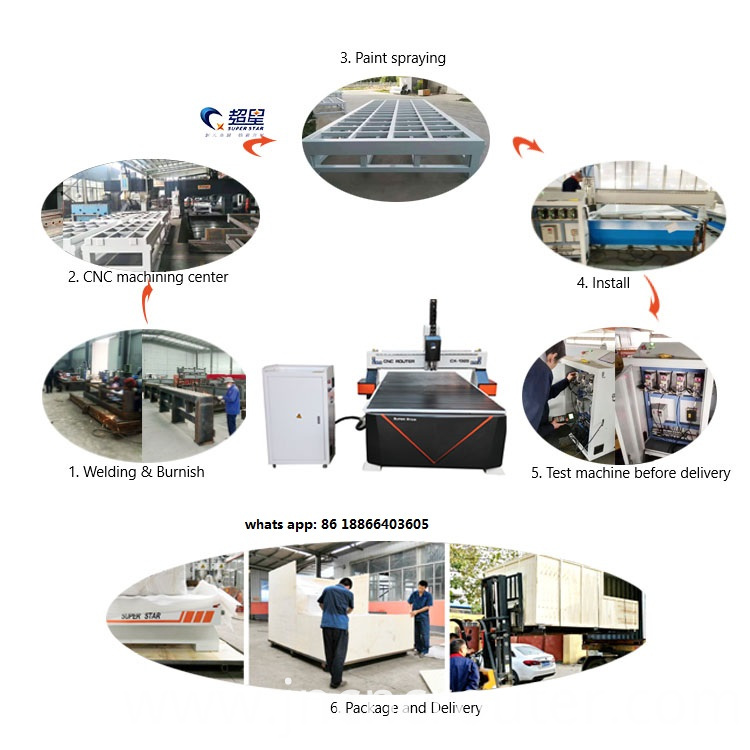

Machine processing:

All Machines are processed by high precision cnc milling machine with same production flow

Sheng Chan Liucheng


Packaging & Shipping
Packing Shipping
Our Services
Professional 10 years international business experience.
6 teams of after-sale service, ensure overseas service in time.


Company Information

Super Star CNC Group was established in 2003, manufacturing of all kinds of CNC router with CE certification.
Workers over 300 persons, 50 overseas sales.
Now we have whole sellers in many countries including United States, Canada ,Australia, England, France,Russia,
Brazil, Argentina, India, Turkey etc.
We have established oversea warehouse in more than 20 foreign countries,it will be much convenient for you to check
the Wood Sculpture Machine quality in person.


Team


FAQ
1.Can I get a Engraving Cnc Machine according to my own requirements?
Sure.We accept OEM and ODM as your requirements.
2.I am a new 3d Cnc Machine machine operator. Do you provide training?
Yes. We supply overseas after-sale service.
3.My Wood Router Cnc Machine machine is broken. Can you repair it for me?
Yes. We have free traning online.
If there is big trouble with your Cutting Wood Machine in the warrenty time, we can repair it.
4.What's the quality of your 3d Cnc Machine?
Our machine adopts heavy lathe bed, and each part is processed by Engraving Cnc Machine center, which greatly improves the accuracy of machine operation.

Looking for ideal Rotary Disc CNC Woodworking Center Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Carrousel ATC Cnc Router 1325 are quality guaranteed. We are China Origin Factory of ATC Woodworking Cnc Router in India. If you have any question, please feel free to contact us.
