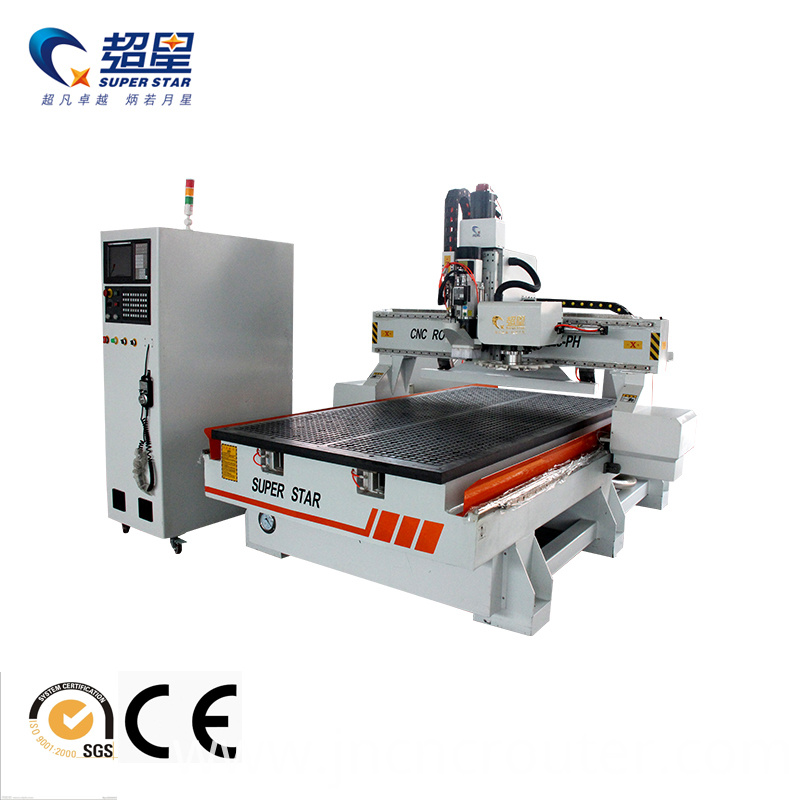

CNC Woodworking Router with tool changer

Share to:
    Unit Price: USD 10000 - 4000 / Set/Sets
    Payment Type: L/C,T/T
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 25 Days

Basic Info

Model No.: CXH-1325

Type: Wood Router

Controlling Mode: CNC

Feed Mode: Mechanical

Spindle Layout: Vertical

Certification: SGS, ISO, CE, CE&ISO

Screw: Multi-Screw

Spindle Number: Single-Spindle

Precision: High Precision

Plastic Processed: PVC

Cutting Machine Type: CNC Cutting Machine

Condition: New

CNC Or Not: CNC

Model Number: SKM25

Brand Name: Superstar

Warranty: One Year

Weight: 1500kg

Table: Vacuum And T-Slot Table

After-sales Service: Engineers Available To Service Machinery Overseas

Additional Info

Packaging: wooden package

Productivity: 100/month

Brand: SUPER STAR

Transportation: Ocean

Place of Origin: JINAN

Supply Ability: 100/month

Certificate: ISO CE

Port: Qingdao

Product Description

CNC China Woodworking Router with automatic tool changer


1.INTRODUCTION

The CNC Router 1325ATC with carousel Tool Magazine loaded with the spindle can change the tool automaically.The tool capacity is 8, tool change time is 8 seconds.

♦ 1325-ATC is used for 2D&3D engraving and cutting,carving .

2.APPLICATION

Furniture Industry: wood doors, cabinets, tables,chairs

Advertising Industry:signage,logo,badges,display board,meeting sign board,billboard

Artwork and Decoration Industry:wood crafts, gift box, jewelry box

Electronic Industry:circuit board, insulation material

Music Industry: musical instrments, loudspeaker box

Soft Metal: aluminum, brass

3.ADVANTAGES cnc router machine carousel automatic tool changer

Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.

Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw,

Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and efficiency.

Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the spindle , make the machine change tools quickly and save time.

Many optional configuration and OEM service available. According to your

requirement, different configurations will be offered.

Product configuration:

Number

Description

Parameter

1

X,Y,Z Working Area

1300mmx2500mmx200mm

2

Table Size

1330mm×3040mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300

4

X,Y,Z Repositioning Accuracy

±0.03mm

5

Table Surface

Vacuum and T-slot Combined (Option: T-slot table)

6

Frame

Welded structure

7

X, Y Structure

Rack and Pinion Drive, Hiwin Rail Linear Bearings

8

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. Power Consumption

4.5kw (Without Spindle)

10

Max. Rapid Travel Rate

45000mm/min

11

Max. Working Speed

30000mm/min

12

Spindle Power

9.0 kw

13

Spindle Speed

0-24000RPM

14

Drive Motors

Yaskawa servo motor

15

Working Voltage

AC 380V/50/60Hz,3PH

16

Command Language

G Code

17

Operating System

Syntec Control System

18

Computer Interface

Ethernet, CF Card

19

Flash Memory

128M(U Disk)

20

Collet

ER32

21

X,Y Resolution

<0.03mm

22

Software Compatibility

Type3/UcancameV9 software (Option: Artcam software)

23

Running Environment Temperature

0 - 45 Centigrade

24

Relative Humidity

30% - 75%

25

Packing Size

3300X2100X1980mm

26

N.W.

1450KG

27

G.W.

1670KG

28

Optional Parts

3.8KW HSD Auto Spindle

Syntech Control System

Dust Collector

Vacuum Pump

Rotary System

Mist-cooling System

850W Yaskawa/800W Panasonic Servo motors

Product picture:

wood tech cnc machine


Wood Sculpture Machine



wood cnc machine


Some Samples:

2252

Packing delivery:

Wood Tech Cnc Machine

Wood Tech Cnc Machine

After-sale service:

Wood Sculpture Machine



Wood Sculpture Machine

258

Looking for ideal Wood Sculpture Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Automatic 3d Wood Carving Cnc Router are quality guaranteed. We are China Origin Factory of Automatic Tool Changer. If you have any question, please feel free to contact us.
